Ignition coil

Skip image gallery

€50.00*

Prices incl. VAT plus shipping costs

Variante
Product number: 161701923

Product information "Ignition coil"

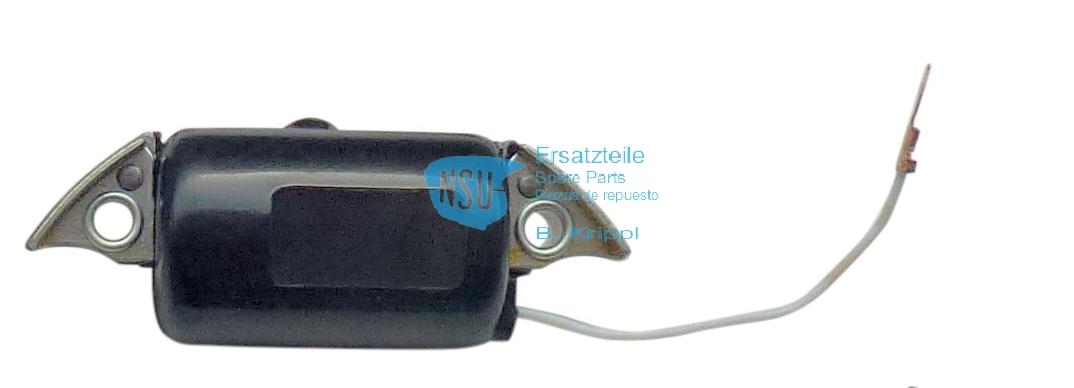

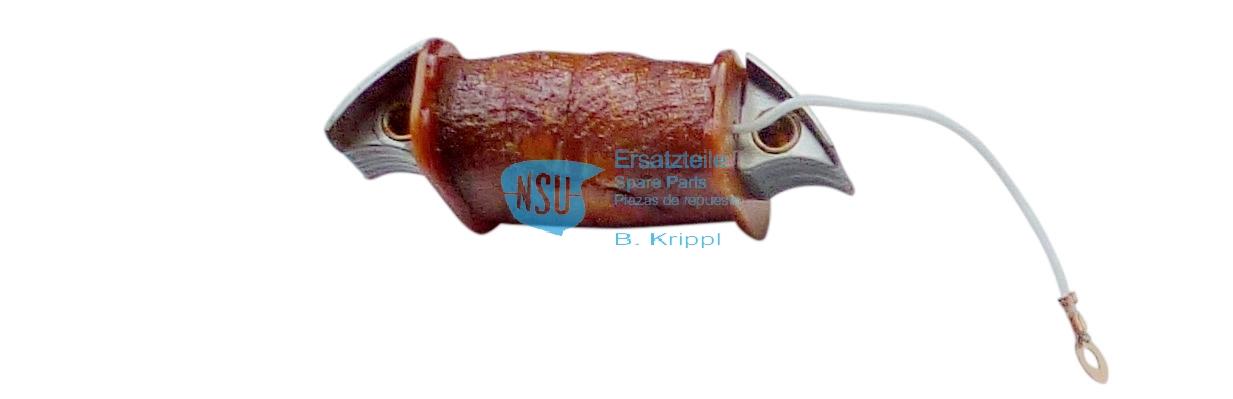

Ignition coil suitable for various models, please measure and compare accordingly!

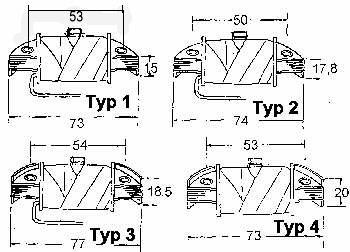

Dimensions:
Type 1: Overall length 73 mm, hole spacing 53 mm
Type 2: Overall length 74 mm, hole spacing 50 mm
Type 3: Overall length 77 mm, hole spacing 54 mm
Type 4: Replacement is type 1
Variante: Typ 3

Herstellerinformationen:
NSU Quickly und Moped Ersatzteile GmbH & Co.KG Siemensstr. 8 77948 Friesenheim WEEE-Nummer:

Verantwortliche Person:
B. Krippl Siemensstrasse 8 77948 Friesenheim DE info@nsu-quickly.de

0 of 0 reviews

Leave a review!

Share your experiences with other customers.
