Ignition system alternator, new NSU Quickly, black coil

NSU Quickly und Moped Ersatzteile GmbH & Co.KG

€139.00*

Prices incl. VAT plus shipping costs

Product number: 161702504

Product information "Ignition system alternator, new NSU Quickly, black coil"

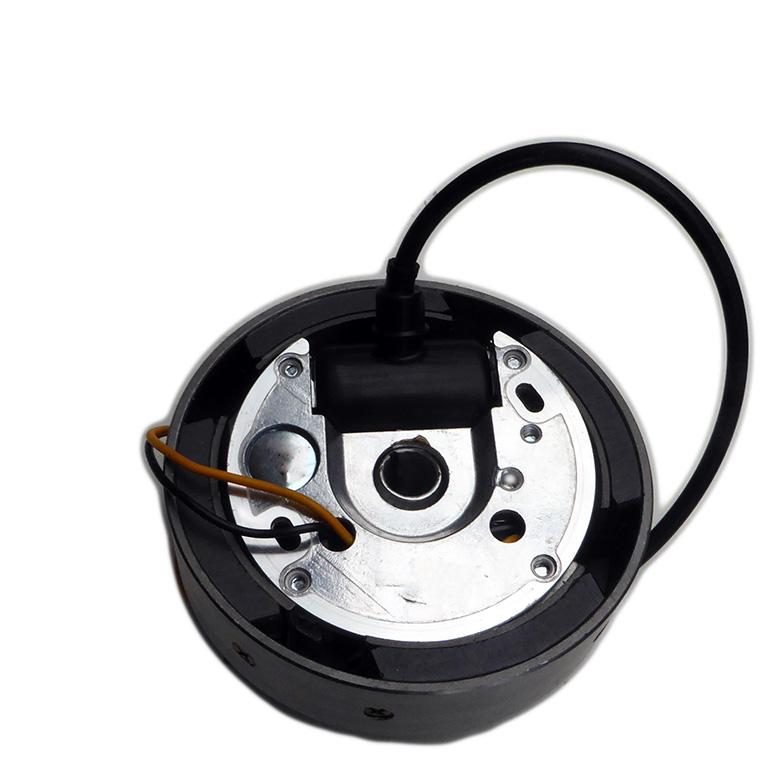

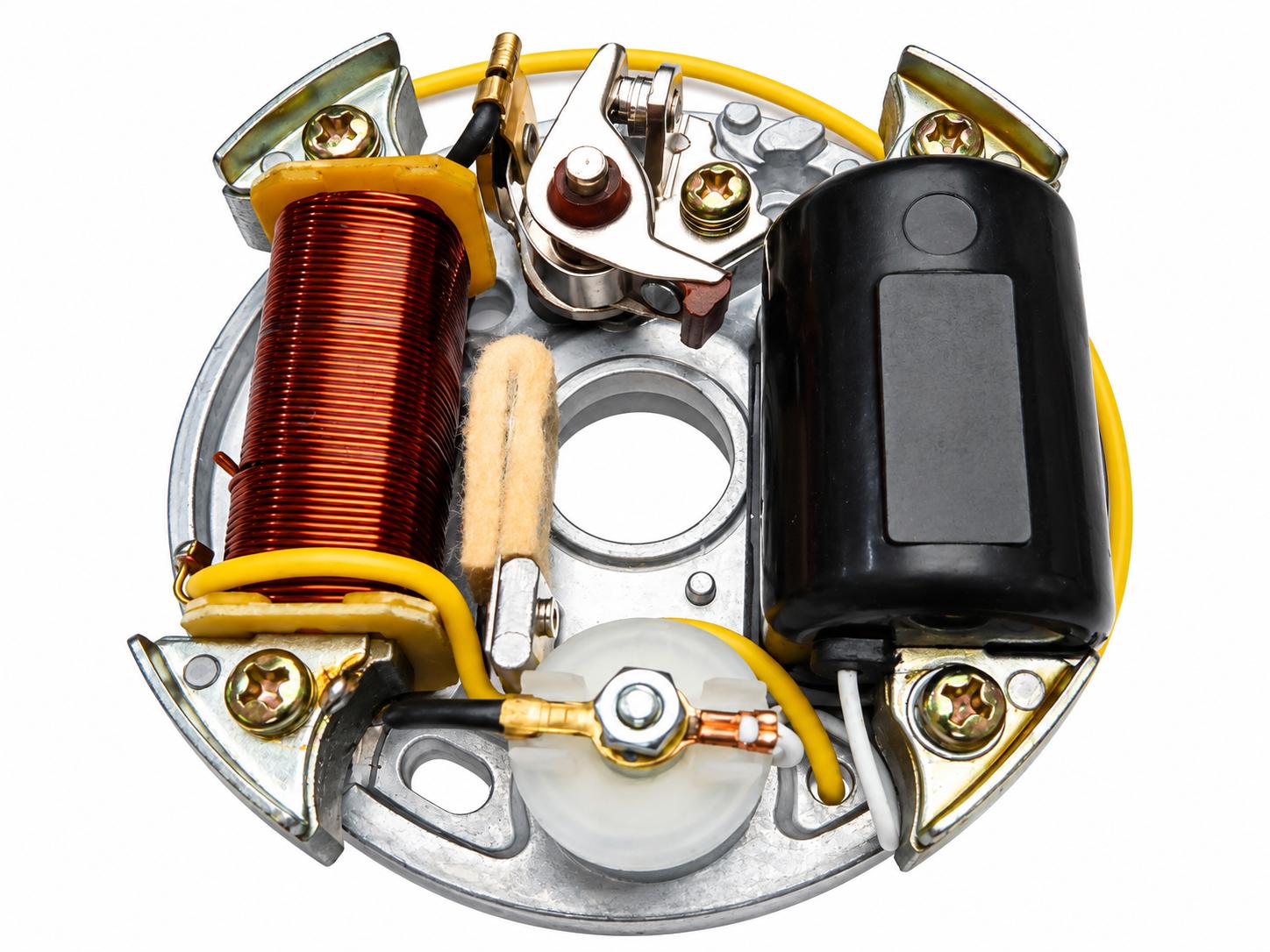

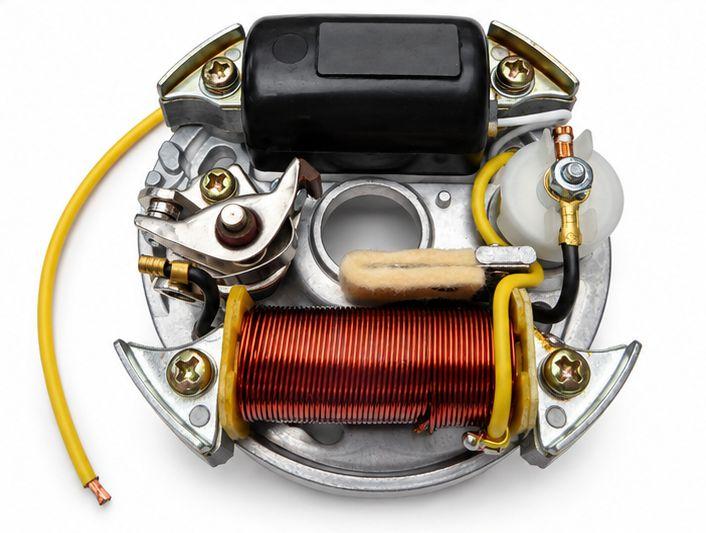

Complete new ignition alternator for NSU Quickly

Ready to install without soldering!
with black, reinforced ignition coil
Advantages:

very strong ignition spark
with cable (no soldering)
Extremely durable
Very low susceptibility to faults
Quick to replace
Ignition coil in original design with wide pole shoes

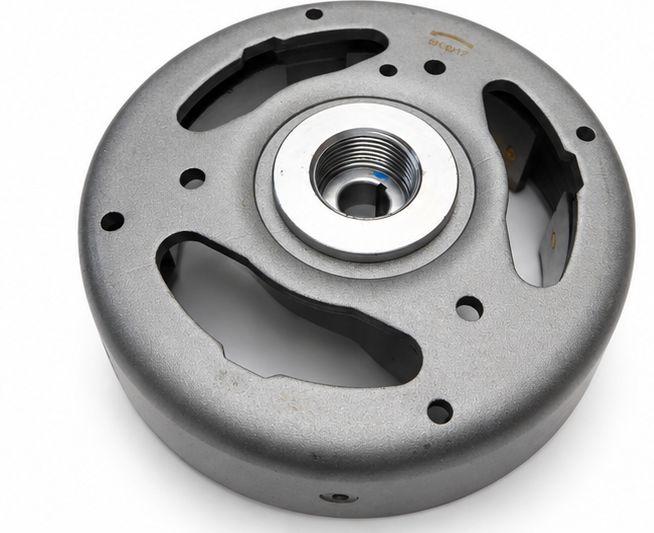

Light output 17 watts, incl. pole wheel.

A comparison is worthwhile!

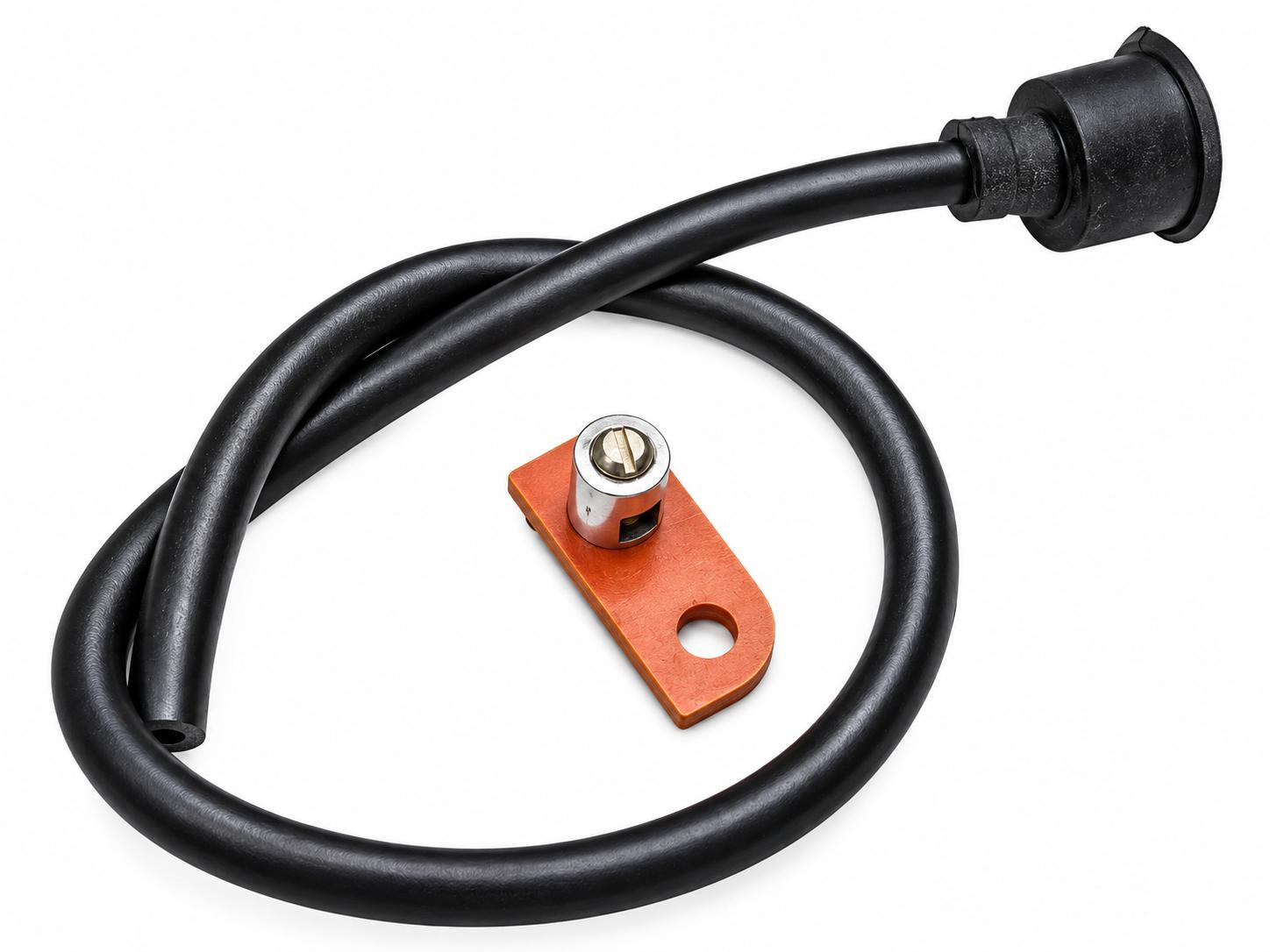

1) incl. original Beru ignition cable with rubber grommet
2) Light cable outlet on base plate in original version. Position

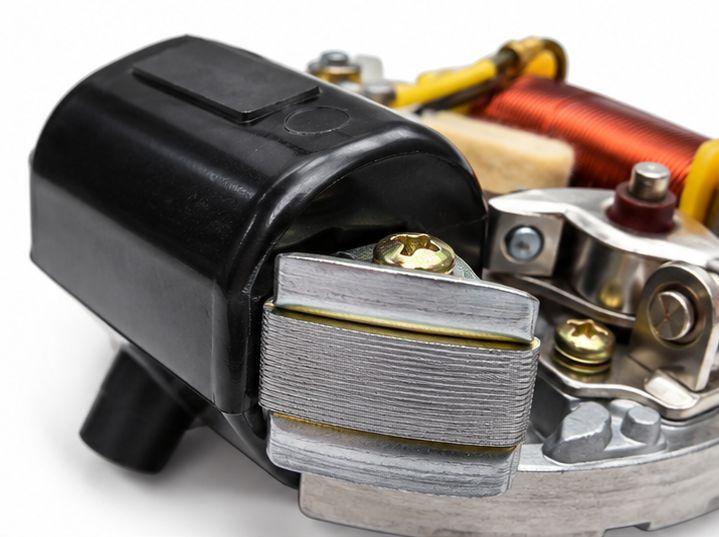

3) Power ignition coil with wide pole shoes!
4) Connection plate for light cable enclosed
5) Original thread for puller
Suitable for all models.
