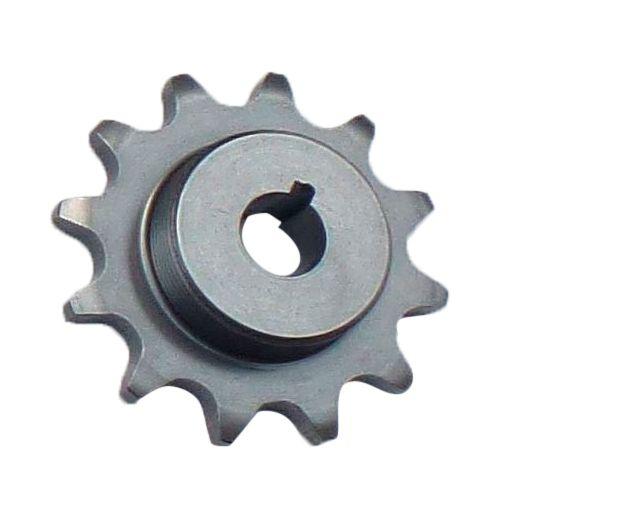

Chain sprocket

Skip image gallery

€18.50*

Prices incl. VAT plus shipping costs

Available, delivery time: : im Zulauf

Ausf.
Product number: 161000109

Product information "Chain sprocket"

suitable from vehicle no. 20694
Chain sprockets with 12 teeth are standard for all models.

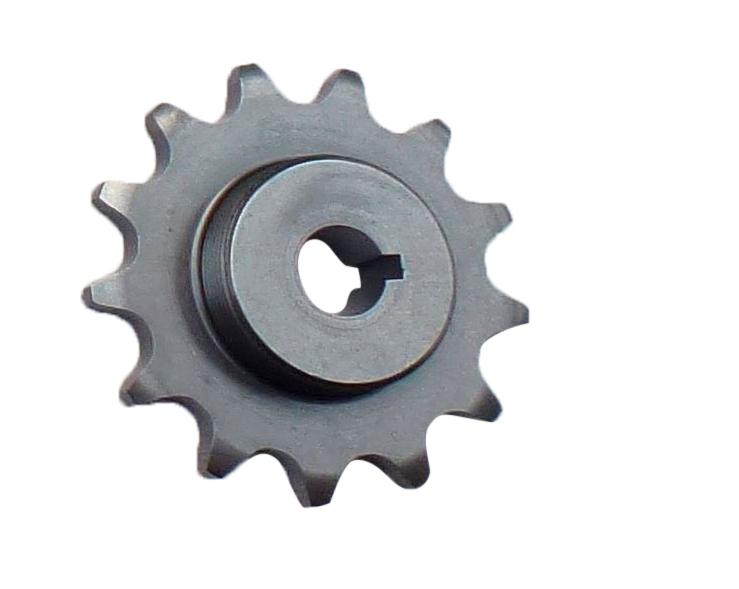

Depending on requirements or use, however, sprockets with 11 teeth (good climbing ability) or 13 teeth (higher top speed) can also be fitted.
The 14-tooth sprocket can only be used after modifying or adapting the housing or using a weaker, non-reinforced chain.
Ausf.: 12Z, 12Z, 12Z
Engine Typ: 2-speed, 3-speed, 3-speed brake right
Models: N, S, L, Cavallino, T, TT, TT-K, N23, S2, S23, S2-23, F23

Herstellerinformationen:
NSU Quickly und Moped Ersatzteile GmbH & Co.KG Siemensstr. 8 77948 Friesenheim WEEE-Nummer:

Verantwortliche Person:
B. Krippl B. Krippl Siemensstrasse 8 77948 Friesenheim DE info@nsu-quickly.de
