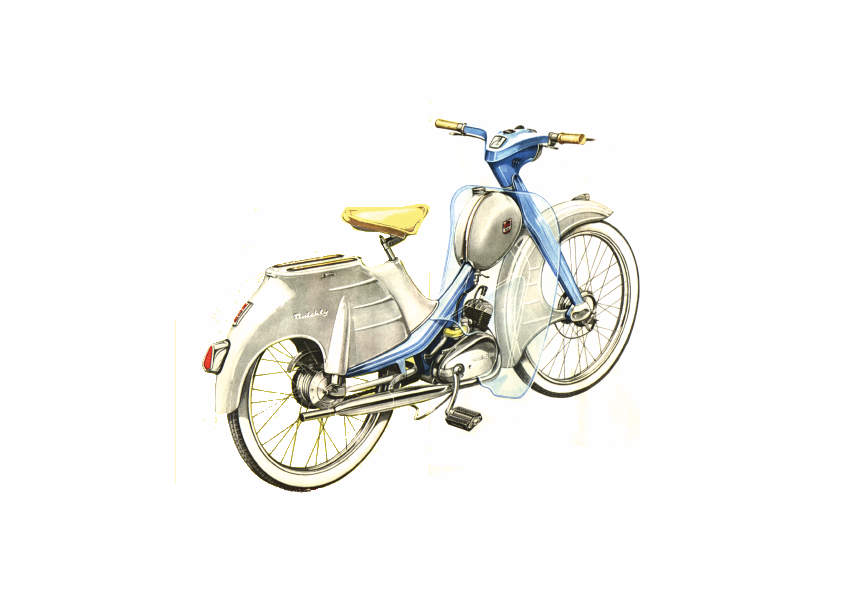

Quickly L

"Luxus"

Mögliche Farbkombinationen: lidoblau/perlgrau
virginabraun/isarsand
oder korallenrot/walgrau

Baujahr 1957 - 1961
Radgröße 26 X 2.00
Weiß-Wandreifen
Chromfelgen

Shift fork 3-G.

€95.00*

"SprayMax" 2-component clearcoat

2K system, 400 ml spray can

Content: 0.4 Liter (€64.50* / 1 Liter)

€25.80*

Details

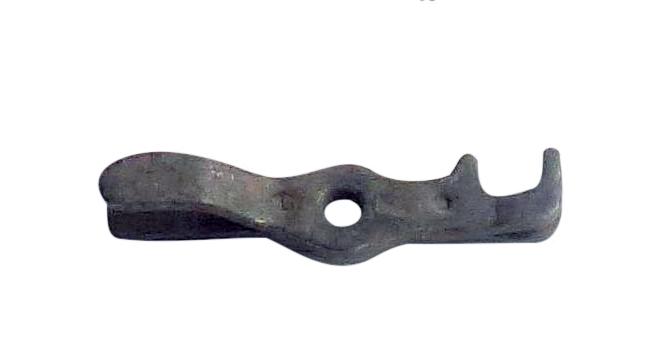

2-speed gear lever (on the engine)

Shift wheel on the engine for all 2-speed versions

€5.50*

3-speed engine overrun kit FAG

Complete overhaul kit for the 3-speed Quickly engineConsisting of all bearings, brand make FAGall shaft seals, all O-rings + manifold sealing ring

€59.80*

Adjusting screw f. Start carburettor incl. nut

Starting carburettor adjusting screw for throttle cable adjustment incl. nut

€3.20*

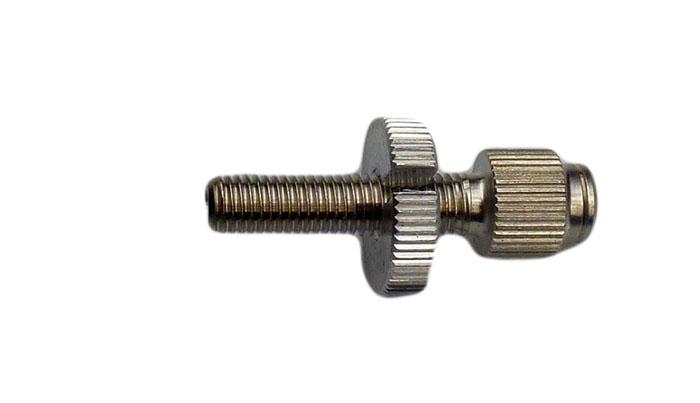

Adjusting screw for handbrake Quickly L

Special adjusting screw for the Quickly L handbrake cable

€7.80*

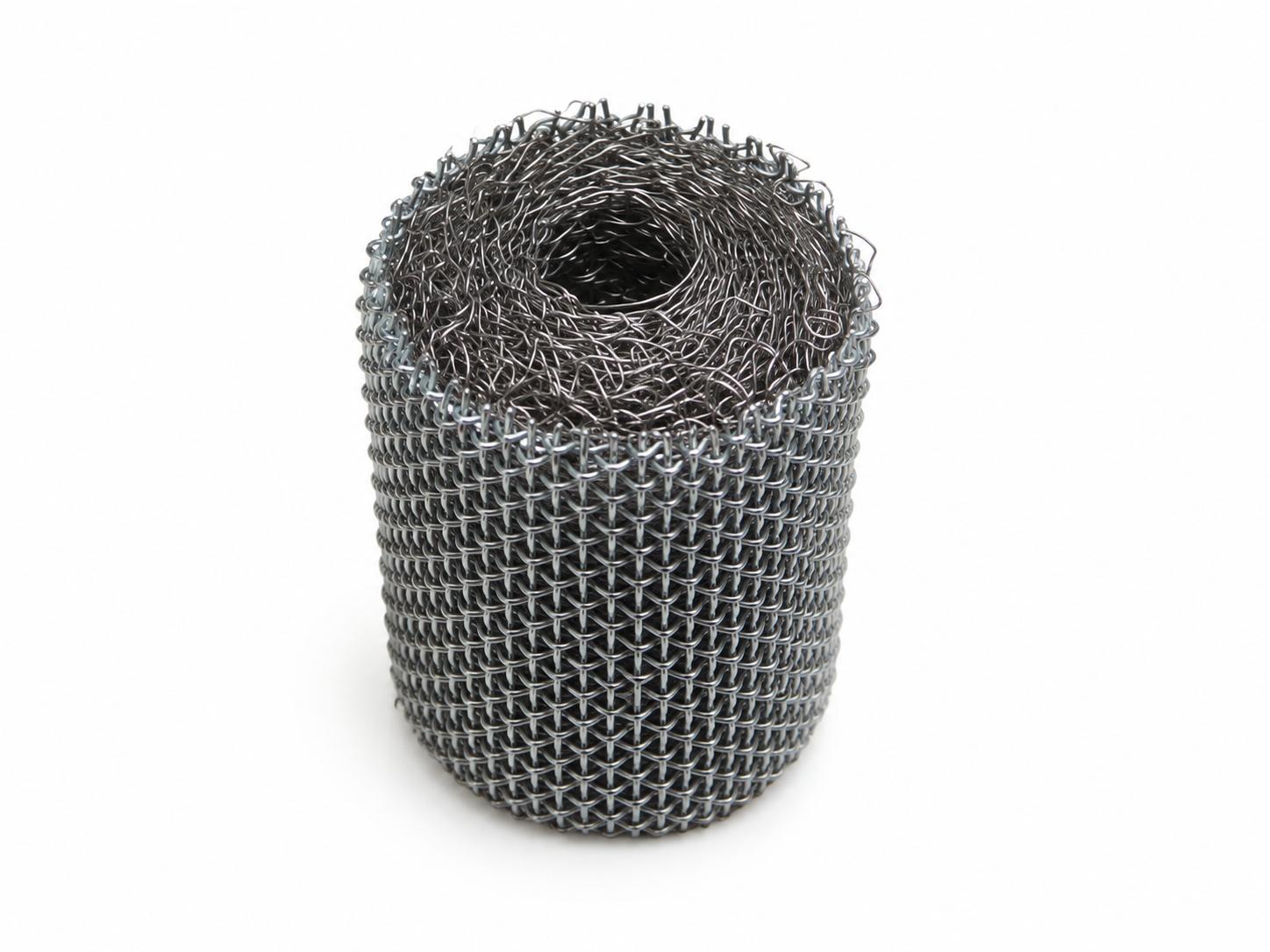

Air filter

Air filter in frame for all models without starter carburettor

€8.50*

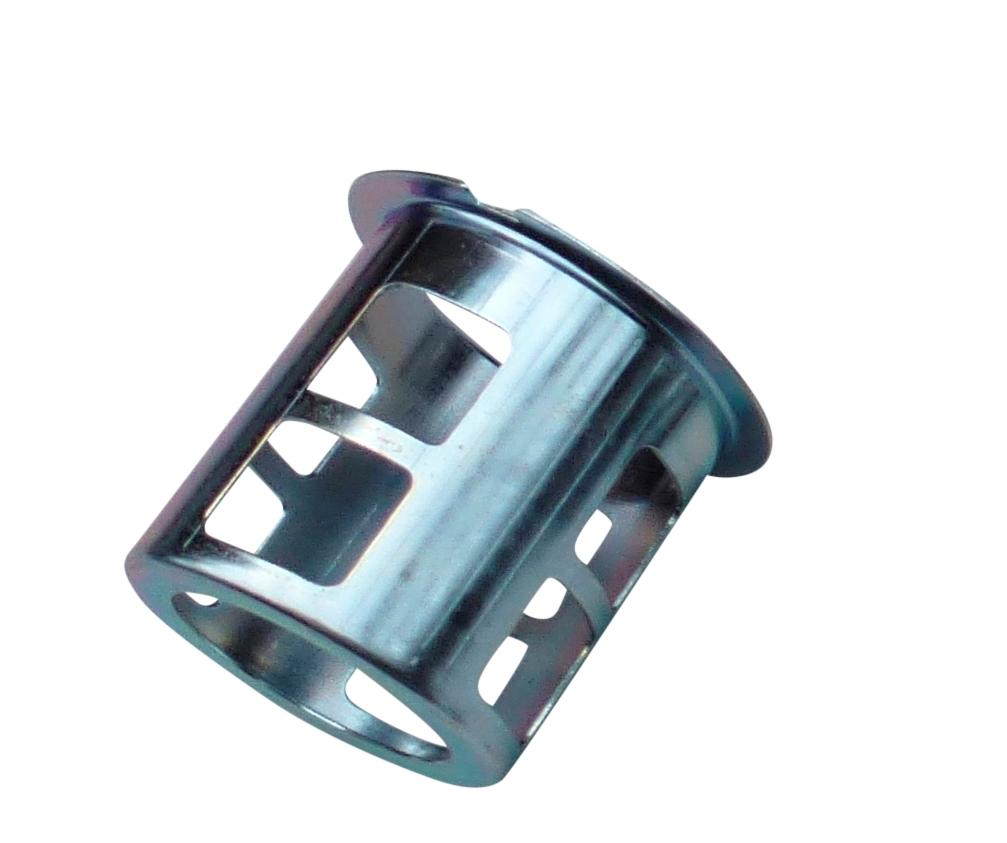

Air filter basket

Inner air filter basket (rotatable) for versions with starting device on the frame

€7.50*

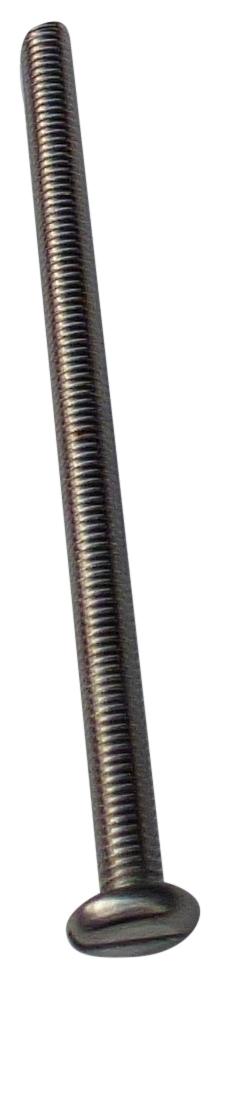

Air filter fastening screw

€0.80*

Air filter for starter carburettor

Air filter in frame for all models with starter carburettor

€8.50*

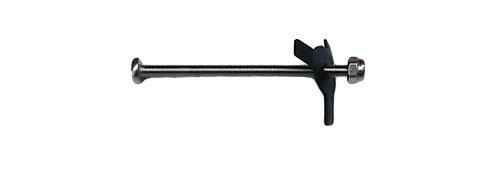

Air filter mounting cpl. set

Set with air filter fastening screw, stop nut and retaining star

€3.90*

Alternator side cover

Note different versions! for all 2-speed and 3-speed models with brake lever on the left-hand side of the motor: Quickly N, S, L, N23 and S23 or version for engines with brake lever on the right: Quickly S2, S23-2, F23, TT, TT/K

From €42.00*

Details

Aluminium profile strips for luggage carrier L and T/pair

incl. rubber pad for Quickly L, also suitable for Quickly T without pillion passenger

€39.00*

Assembly tool for clutch basket inside

Special tool for easy assembly of the inner clutch basket

€14.80*

Ball bearing for clutch

Ball bearing NSU-Quickly Motor quality from FAG

€6.50*

Ball bearing for crankshaft

Ball bearing for crankshaft (quality from FAG) 2 pieces are needed!

€6.50*

Ball bearing for gear shaft

Ball bearing for the gear shaft 2-speed engine (2 pieces are required)for 3-speed engines one bearing is required and one bearing Article No. 160100601

€6.50*

Ball bearing gearbox shaft 3 speed

f. Driven shaft 3-G.

€6.80*

Ball bearing set 2 speed FAG

5-piece ball bearing set - brand bearings FAG

€29.80*

Ball bearing set 3 speed FAG

5-piece ball bearing set with brand bearings from FAG Complete set of bearings for engine overhaul

€29.80*

Ball set for steering (42 pcs.)

Complete ball set for steering, 42 balls (for top bottom)

€5.00*

Bearing bolt for breaker, type 1

Breaker bearing bolts for all "Type 1" breakers

€6.80*

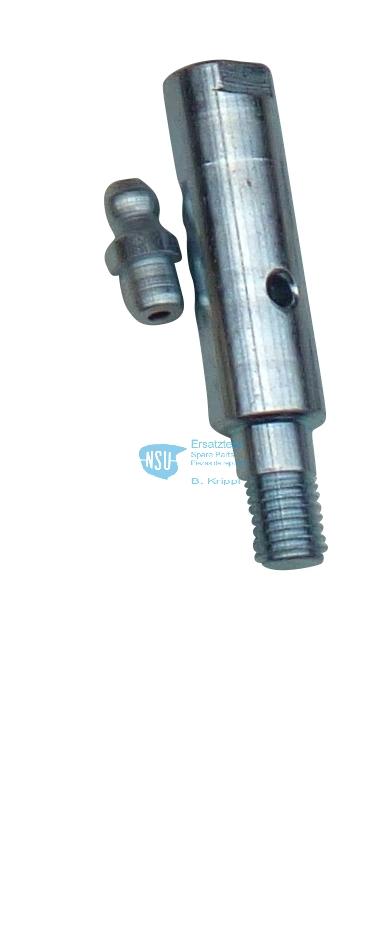

Bearing bolt for rear swing arm L

Bearing bolt incl. grease nipple(2 required)

€14.50*

Bearing cone

2nd version - brake drum or opposite side

From €9.80*

Details

Bearing screw f. Rocker arm

Bearing screw - special screw for rocker arm bearings

€4.20*

Bearing shell

Bearing shell for the wheel ball bearings of the NSU Quickly

€8.00*

Bearing spacer bushing

Bearing spacer bush for rocker arm (2 required per vehicle)

€4.50*

Bearing tube for wire stand

galvanised, incl. washer and split pin

€9.50*

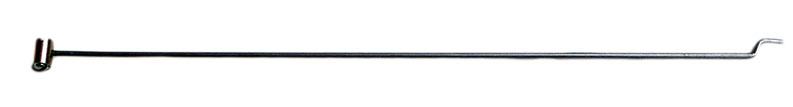

Bell pull Quickly L with nipple

Special operating wire for bell model Quickly L, incl. matching screw nipple

€4.90*

Bolt for brake tab incl. fuse

Bolt for brake linkage, incl. safety catch, stainless steel - for brake linkage or cable pull

€3.20*

Bolt for driving disc

Bearing bolt for driving disc on 3-speed engine

€3.50*

Bolt for gear lever

Bolt for gear lever bearing 2-speed different versions - note engine number!

From €2.90*

Details

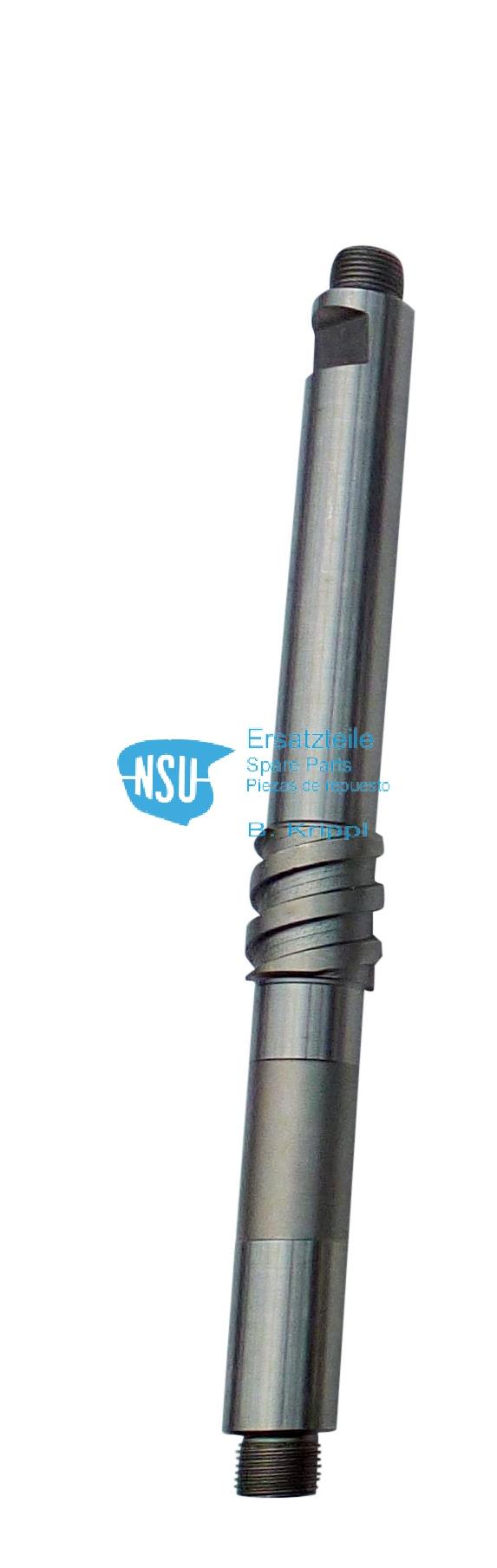

Bottom bracket axle

Bottom bracket axle for all 2-speed motors and 3-speed motors with left brake

€29.80*

Bracket for rear brake cable Quickly F, Cav, L

Bracket for attaching the brake cable

€4.80*

Brake lever on front wheel N,S,L,N23,S23

from. F.No. 482755

€5.90*

Brake lever on the motor

Note different versions!

From €13.20*

Details

Brake lever on the rear wheel

Brake lever on the rear wheel hub 2nd version

€5.90*

Brake lever retaining ring (pair)

Set of 2 for all 2 and 3-speed engines with left brake

€1.00*

Brake pads for riveting on (2 pcs. incl. rivets)

Set of 2 pads for one wheel, suitable for Quickly N,S,L,N23,S23

€12.80*

Brake plate front 2nd version, branded

Without baking

€45.00*

Details

Brake return spring 2nd version, internal

Inner spring for brake shoes 2nd version

€4.00*

Brake return spring, outer, rear wheel 2nd version

Brake return spring on the rear brake, 2nd version - suitable for N,S,L,N23,S23

€5.00*

Brake shoes cpl. 2nd version

Completely bonded brake shoes from current production - no cured old stock ( set for one wheel)

€26.80*

Brake spanner front and rear wheel 2nd version

(e.g. screws)

€6.90*

Breaker

Complete circuit breaker - note the different versions! Type 1 Bosch No. 1217013010, centre hole 6 mm, adjustment via eccentric,most common versionType 2 centre hole 8 mm, adjustment via 2 notches Please refer to the illustrations

From €9.50*

Details

Bulb for headlight 15W

6V 15W suitable for 17 Watt systems see also designation on the pole wheel (Example: ELZJ 17 L = 17 watts)Total output 17 watts : 15 W for headlights, 2 W for tail lights)

€3.00*

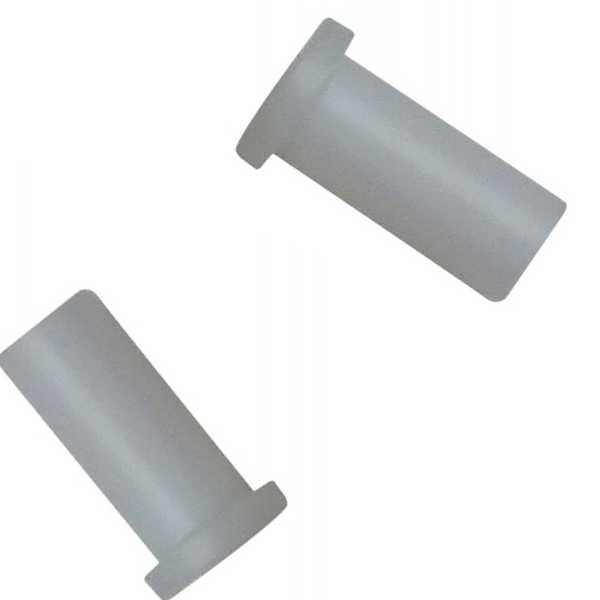

Bushes for shock absorber rubber L, set of 2 pcs.

Plastic bushing for shock absorber rubber Quickly L

€9.80*

Details

Bushing f. countershaft 3-G., right.

for all 3-speed engines from no. 743607

€10.80*

Bushing for countershaft 3-G left

Bushing for countershaft 3-speed, left (all engines) also for right crankcase half up to engine 743606

€10.80*

Bushing for gearwheel 2-G.

Bearing bush for gearwheel 2-speed motor

€6.50*

Bushing for selector shaft 2-G

Bearing bush (housing/shift shaft) 2 speed

€6.00*

Bushing for shift shaft 3-G.

for all 3-speed Quickly engines

€6.00*

Capacitor

Ignition capacitor different versions (for soldering or screwing) Capacitors are a frequent source of faults due to their age and should always be replaced

From €4.80*

Details

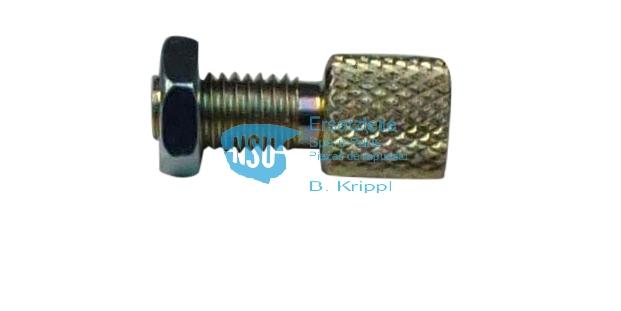

Carburettor adjusting screw w. nut

Adjusting screw for idle throttle - Carburettor without starting device

€3.40*

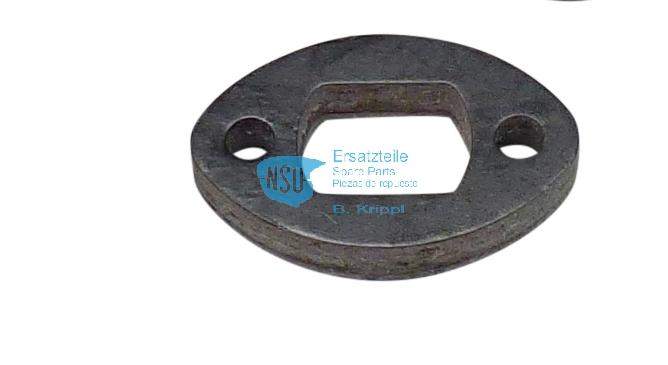

Carburettor gasket

Carburettor flange gasket approx. 8 mm thick

€4.80*

Tip

New

Carrying handle, new!

Original carrying handle, Aluminium polished

€29.80*

Chain sprocket

suitable from vehicle no. 20694Chain sprockets with 12 teeth are standard for all models. Depending on requirements or use, however, sprockets with 11 teeth (good climbing ability) or 13 teeth (higher top speed) can also be fitted. The 14-tooth sprocket can only be used after modifying or adapting the housing or using a weaker, non-reinforced chain.

From €17.50*

Details
