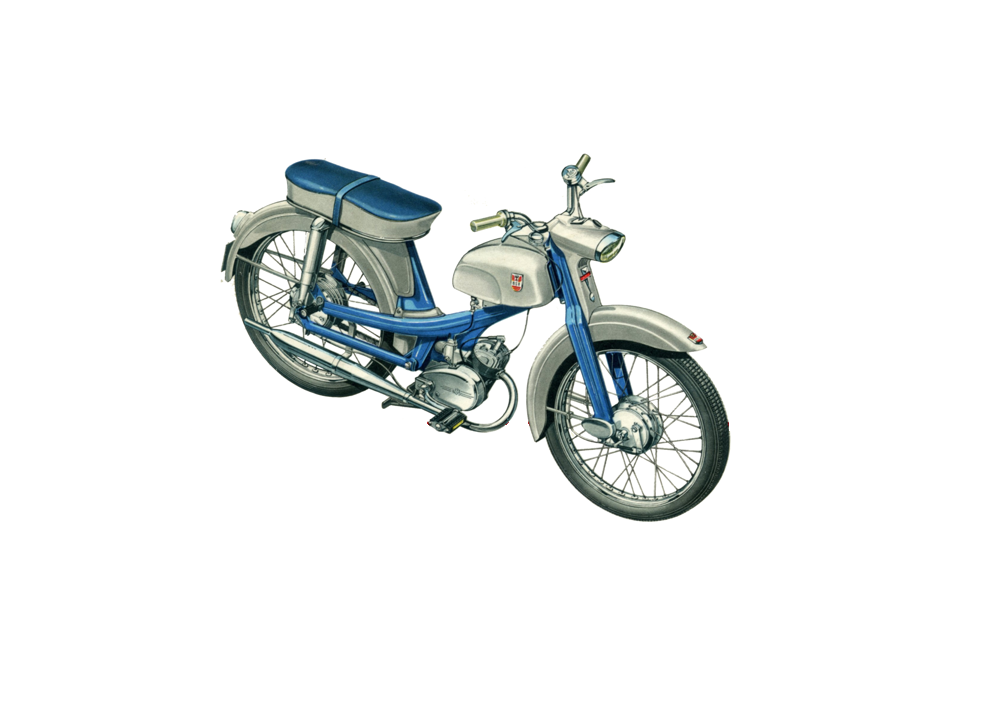

Quickly F23

Quickly F23 (mit Hinterradfederung)

Baujahr 1962 - 1969

Farbkombinationen arconasand/fliegerblau

Reifengröße 23 X 2.25 / 23 X 2.50

Alu-Felgen

3-Gang Getriebe
1,7 PS Motor - Ausführung Bremshebel am Motor rechts

"SprayMax" 2-component clearcoat

2K system, 400 ml spray can

Content: 0.4 Liter (€64.50* / 1 Liter)

€25.80*

Details

3-speed engine overrun kit FAG

Complete overhaul kit for the 3-speed Quickly engineConsisting of all bearings, brand make FAGall shaft seals, all O-rings + manifold sealing ring

€59.80*

Adjusting screw f. Clutch (slotted)

€2.80*

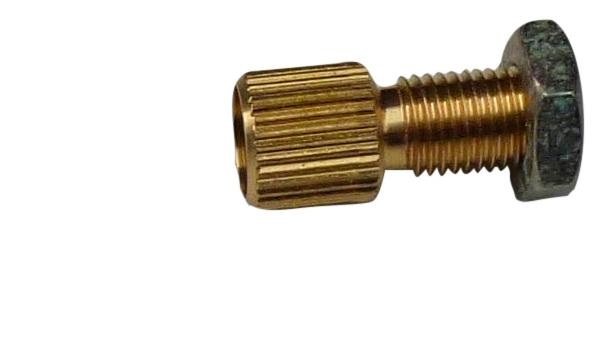

Adjusting screw f. Start carburettor incl. nut

Starting carburettor adjusting screw for throttle cable adjustment incl. nut

€3.20*

aeroplane blue "SprayMax"

Contents: 400 ml 2-component spray paint can in the colour "aviator blue" is required for the colour combination aviation blue/arcona sand (frame, suspension fork) New: now all Quickly colours as 2-component paint for spraying in the original "Spraymax" spray can SprayMax technology gives SprayMax spray paint cans the highest product quality, which clearly sets them apart from conventional spray paint cans. There is no comparable product quality in the entire competitive environment. You can paint with it just like with a spray gun!

Content: 0.4 Liter (€105.00* / 1 Liter)

€42.00*

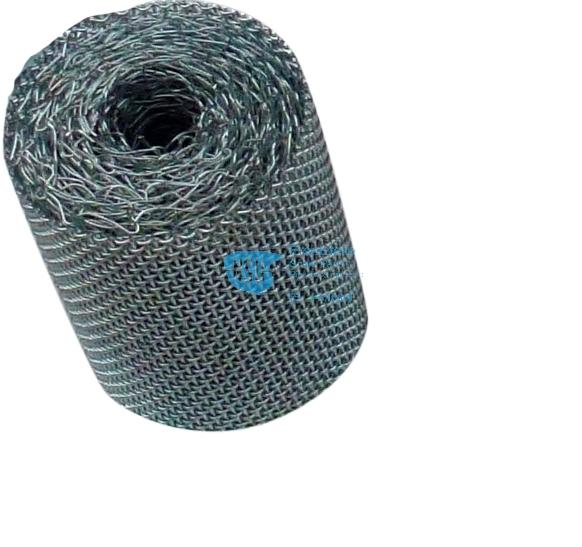

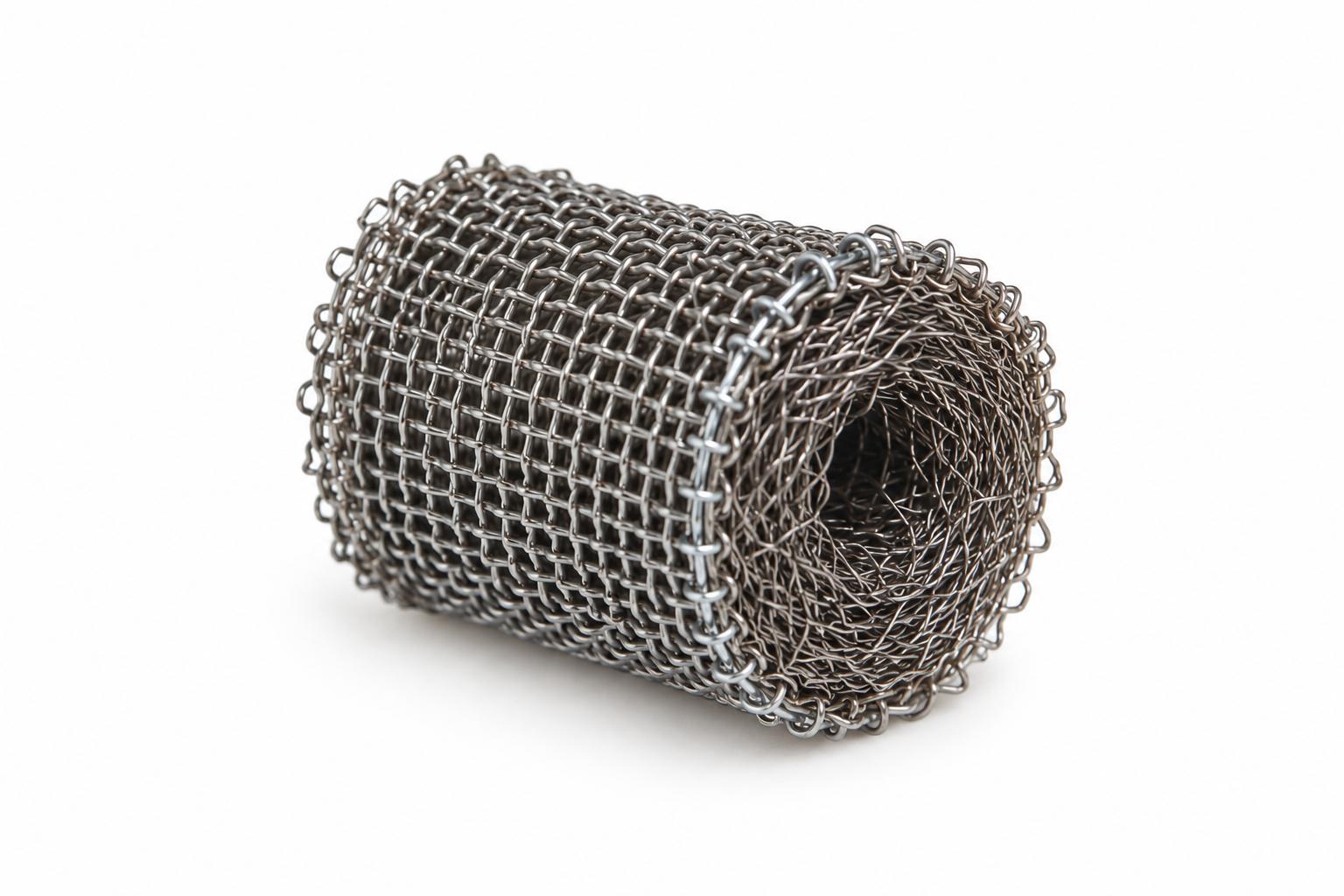

Air filter for starter carburettor

Air filter in frame for all models with starter carburettor

€8.50*

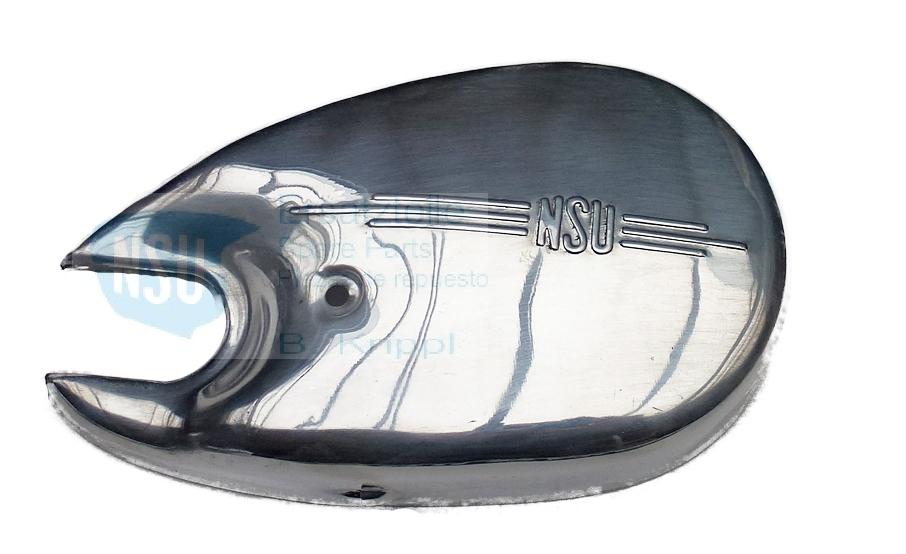

Alternator side cover

Note different versions! for all 2-speed and 3-speed models with brake lever on the left-hand side of the motor: Quickly N, S, L, N23 and S23 or version for engines with brake lever on the right: Quickly S2, S23-2, F23, TT, TT/K

From €42.00*

Details

arconasand "SprayMax"

Content: 400 ml 2-component spray paint can in the colour "arconasand" is required for the colour combination aviation blue/arconasand ( (tank, sheet metal parts) Quickly S23, S2-23 F The SprayMax technology gives the SprayMax spray paint cans the highest product quality, which clearly sets them apart from conventional spray paint cans. There is no comparable product quality in the entire competitive environment. You can paint with it just like with a spray gun!

Content: 0.4 Liter (€105.00* / 1 Liter)

€42.00*

arconasand 2K paint

High-quality 2-component paint colour "arconasand" for Quickly S23, S2-23 and F (mudguards + tank) + N23 (tank + rims)Paint is mixed with hardener in a ratio of 2:1 (hardener must be ordered separately)

From €34.00*

Details

Assembly tool for clutch basket inside

Special tool for easy assembly of the inner clutch basket

€14.80*

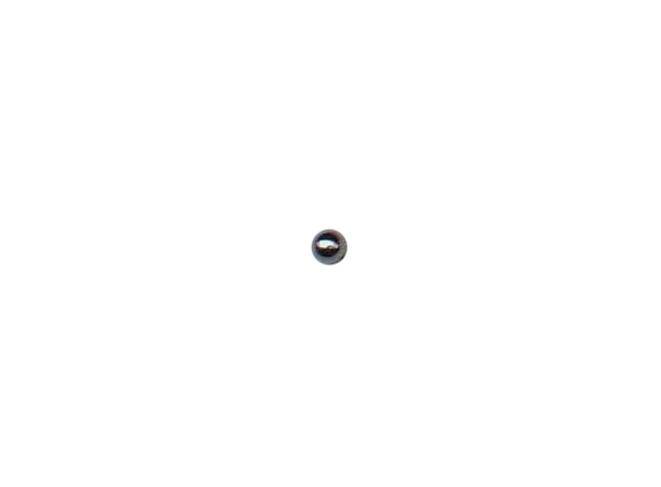

Ball 4 mm for gear lever fitting

Ball 4 mm for original inside gear lever fitting

€0.20*

Ball bearing for clutch

Ball bearing NSU-Quickly Motor quality from FAG

€6.50*

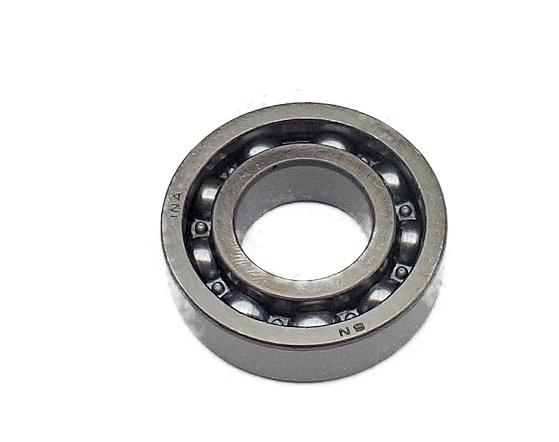

Ball bearing for crankshaft

Ball bearing for crankshaft (quality from FAG) 2 pieces are needed!

€6.50*

Ball bearing for gear shaft

Ball bearing for the gear shaft 2-speed engine (2 pieces are required)for 3-speed engines one bearing is required and one bearing Article No. 160100601

€6.50*

Ball bearing gearbox shaft 3 speed

f. Driven shaft 3-G.

€6.80*

Ball bearing set 3 speed FAG

5-piece ball bearing set with brand bearings from FAG Complete set of bearings for engine overhaul

€29.80*

Ball set for steering (42 pcs.)

Complete ball set for steering, 42 balls (for top bottom)

€5.00*

Bearing bolt for breaker, type 1

Breaker bearing bolts for all "Type 1" breakers

€6.80*

Bearing bolt for shock absorber F,T,TT,TTK,Quick50

Bearing bolt for front or rear shock absorber mounting

€4.60*

Bearing bush for shock absorber F,T,TT,TTK,Quick 50

Bearing bush for front or rear shock absorbers.2 or 4 bushes are required per vehicle.

€4.00*

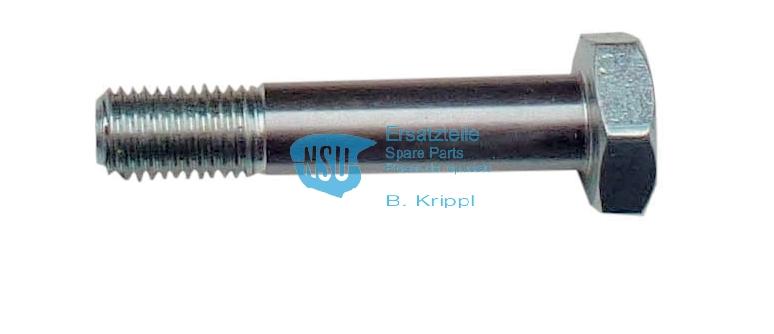

Bearing screw f. Rocker arm

Bearing screw - special screw for rocker arm bearings

€4.20*

Bearing spacer bushing

Bearing spacer bush for rocker arm (2 required per vehicle)

€4.50*

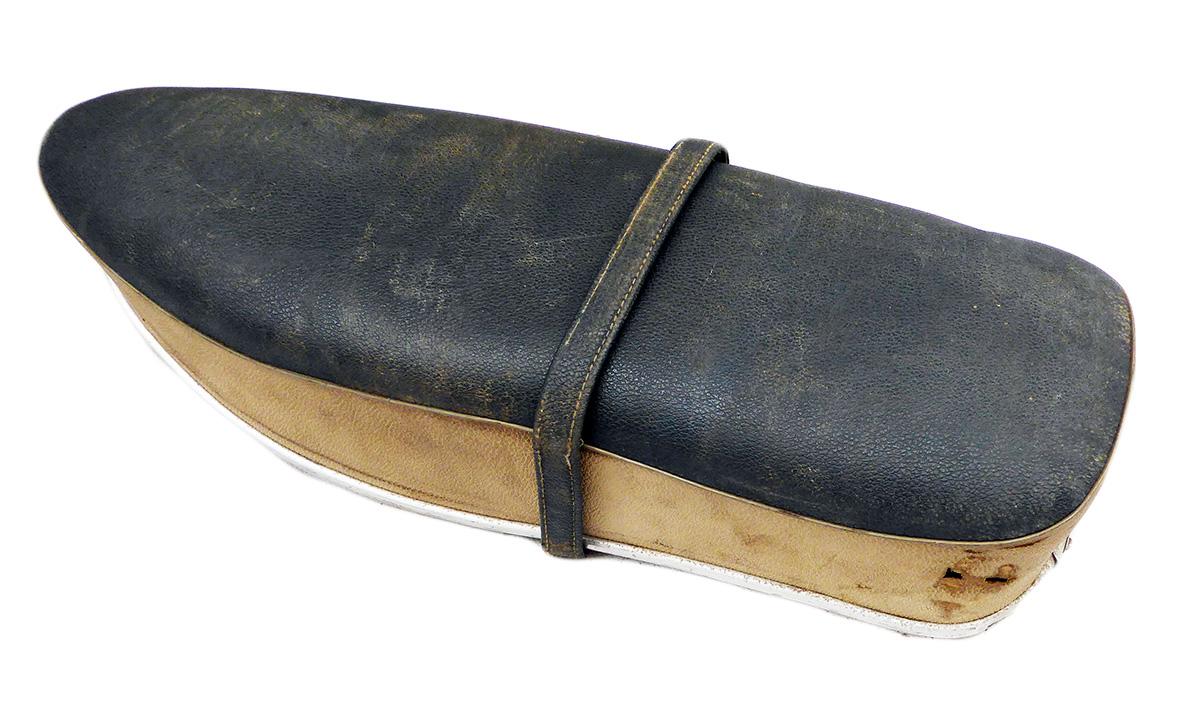

Bench seat S2-23, F23, second-hand

used seat bench for Quickly F23 / S2-23 for restoration

€74.00*

Bolt for brake tab incl. fuse

Bolt for brake linkage, incl. safety catch, stainless steel - for brake linkage or cable pull

€3.20*

Bolt for driving disc

Bearing bolt for driving disc on 3-speed engine

€3.50*

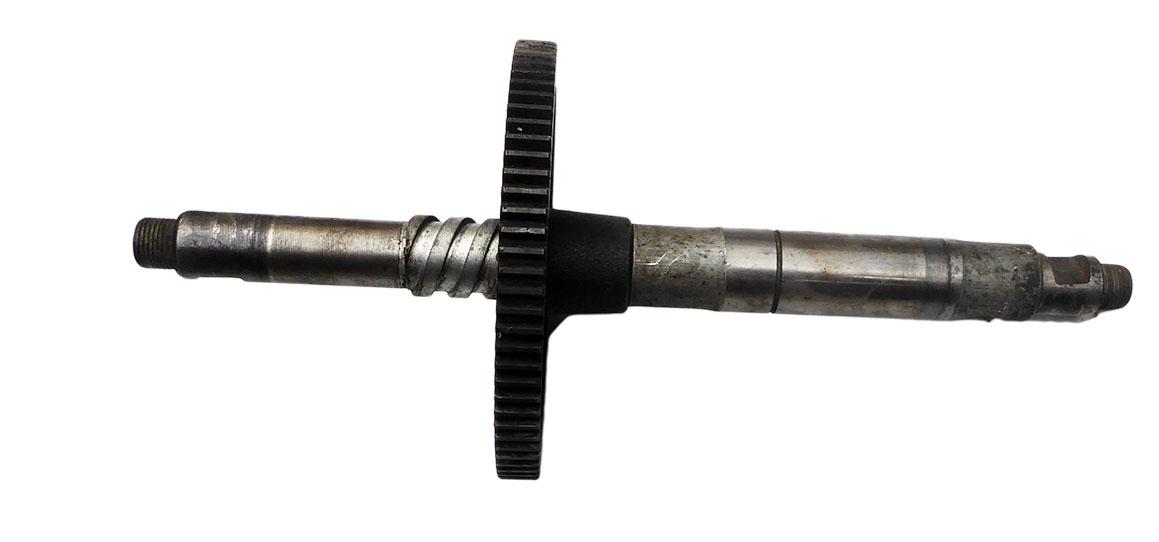

Bottom bracket axle Quickly F used

€59.00*

Bottom bracket axle Quickly F with spacer tube, original

€95.00*

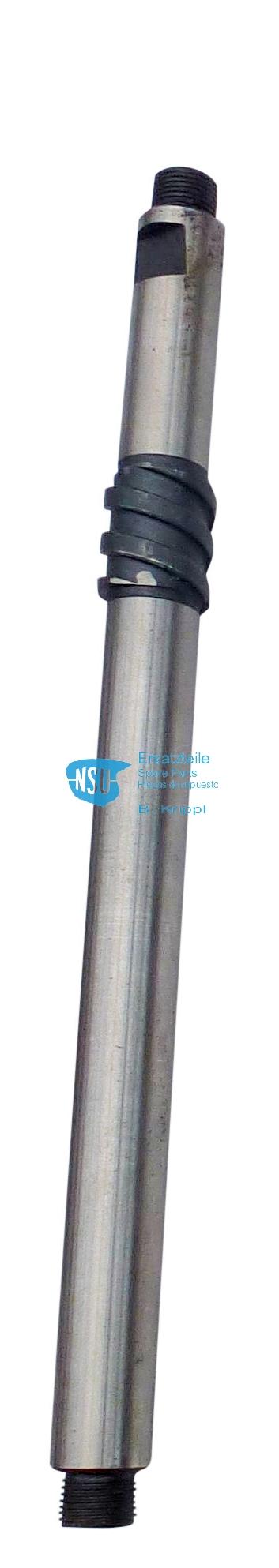

Bottom bracket axle Quickly T,TT,F23

€29.80*

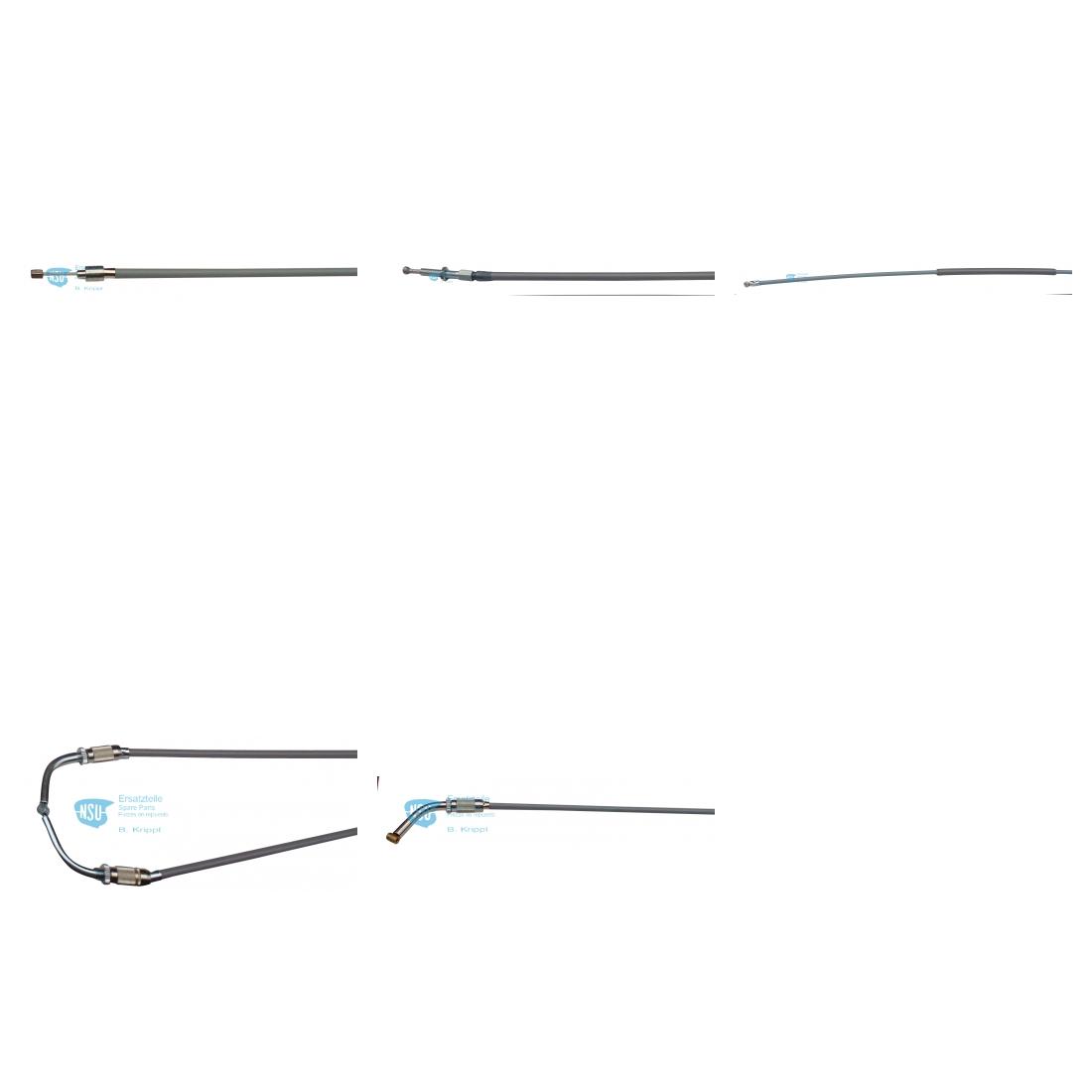

Bowden cable set Quickly F23, S2-23 3-speed

1 x each decompression cable, throttle cable, handbrake cable, clutch cable, 3-speed gearshift cable

€45.00*

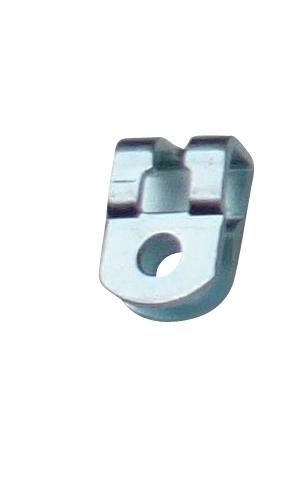

Bracket for rear brake cable Quickly F, Cav, L

Bracket for attaching the brake cable

€4.80*

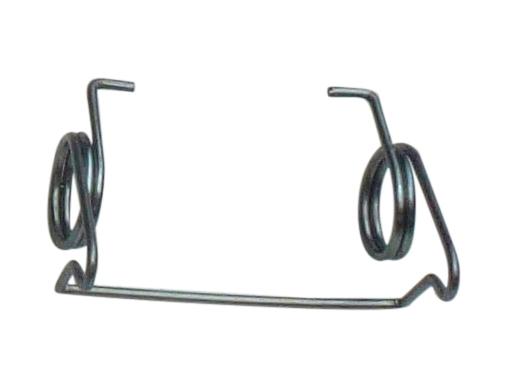

Bracket for speedometer

Retaining spring for fastening the speedometer(169204501)in the headlight

€7.00*

Brake control screw throttle grip M6

Screw at the bottom of the throttle grip - note dimensions! versions possible!

€8.90*

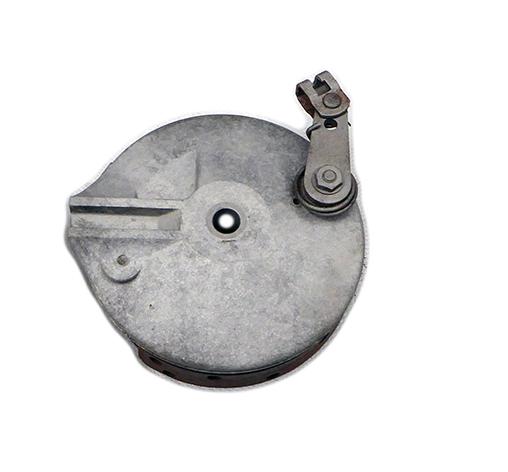

Brake disc Quickly F23, rear wheel, used

Brake plate, for Quickly model F23, rear wheel - used as illustrated

€65.00*

Details

Brake lever for foot brake (3-speed right-hand brake) - second-hand

Used brake lever for engines with brake output on the right

€22.50*

Details

Brake lever retaining rings Quickly S2, F23, S2-23

1 set of circlips for right-hand brake motor

€1.00*

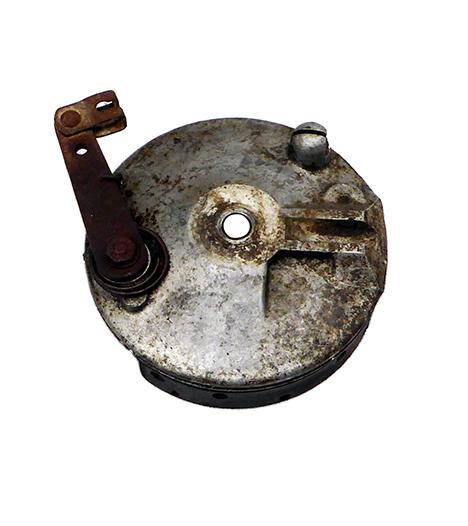

Brake plate F23 front wheel, second-hand

Support plate for front brake model Quickly F23, used as illustrated

€69.00*

Brake return spring, external

Ausf.: Rear wheel

Quickly S23-2,S2,F,T,TT,Quick50

€6.80*

Brake shoes cpl. S23-2/F/T/TT

Ready-glued brake shoes suitable for Quickly S2, S23-2, F, Quick 50, T, TT, TT/K Set for one wheel

€27.00*

Breaker

Complete circuit breaker - note the different versions! Type 1 Bosch No. 1217013010, centre hole 6 mm, adjustment via eccentric,most common versionType 2 centre hole 8 mm, adjustment via 2 notches Please refer to the illustrations

From €9.50*

Details

Bulb for headlight 15W

6V 15W suitable for 17 Watt systems see also designation on the pole wheel (Example: ELZJ 17 L = 17 watts)Total output 17 watts : 15 W for headlights, 2 W for tail lights)

€3.00*

Bushing f. countershaft 3-G., right.

for all 3-speed engines from no. 743607

€10.80*

Bushing for countershaft 3-G left

Bushing for countershaft 3-speed, left (all engines) also for right crankcase half up to engine 743606

€10.80*

Capacitor

Ignition capacitor different versions (for soldering or screwing) Capacitors are a frequent source of faults due to their age and should always be replaced

From €4.80*

Details

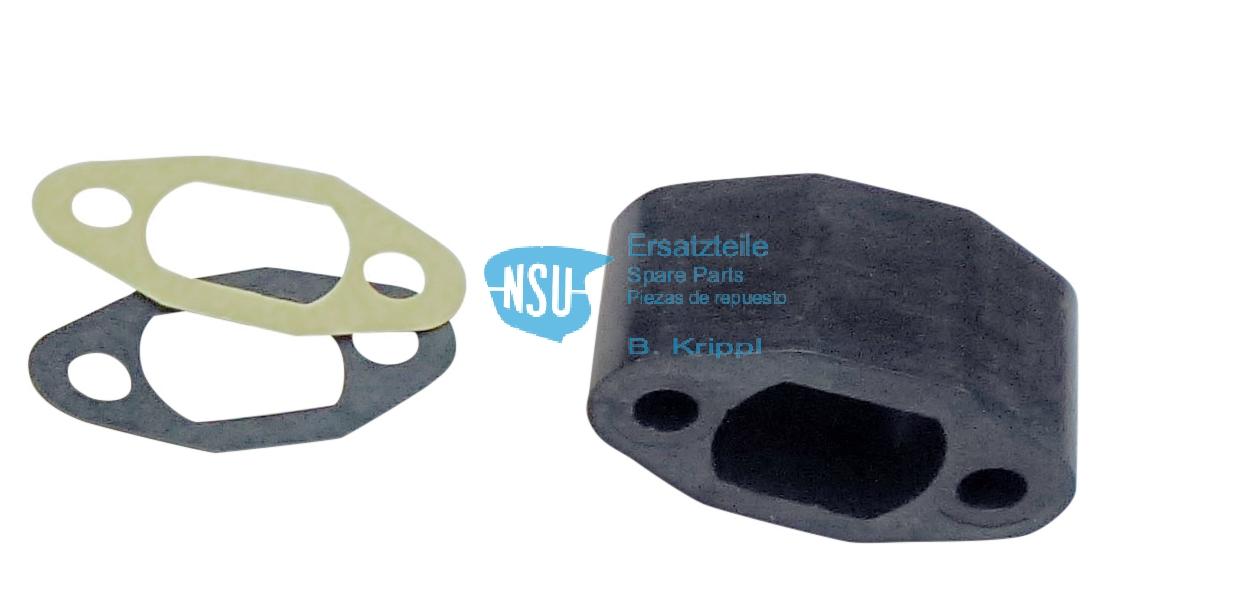

Carburettor gasket (Bakelite)

complete with 2 gasketsapprox. 2.5 cm thick suitable for cylinders with long stud bolts for carburettor mounting, the 3rd version intake hose is also required

€10.80*

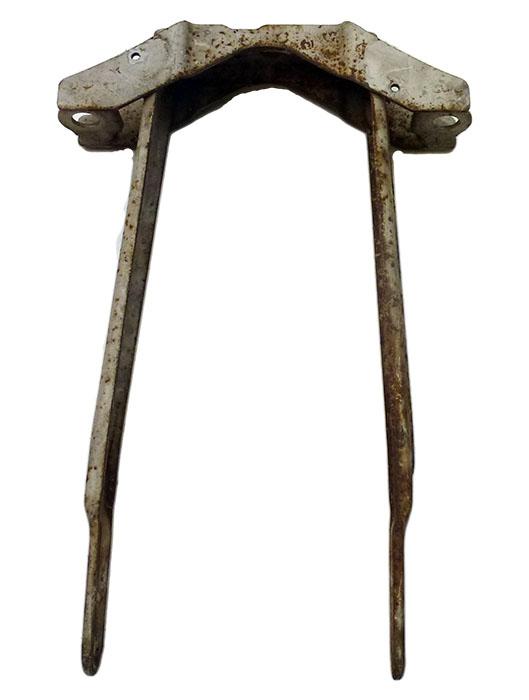

Carrier for bench seat F23

Support for Quickly F23 bench seat (used spare part)Fig. exemplary

€48.00*

Chain sprocket

suitable from vehicle no. 20694Chain sprockets with 12 teeth are standard for all models. Depending on requirements or use, however, sprockets with 11 teeth (good climbing ability) or 13 teeth (higher top speed) can also be fitted. The 14-tooth sprocket can only be used after modifying or adapting the housing or using a weaker, non-reinforced chain.

From €17.50*

Details

Chain tensioner S2-23,F23, S2 - pair (slightly cranked)

Set of chain tensioners, galvanised, for 12mm thru axle(e.g. Quickly S2, S2-23, F, T, TT)- only available in a slightly offset version -

€3.90*

Chrome rim 23 X 2.25, hallmarked

23 x 2.25 (1.35 - 19), chrome-plated punched version, 36 holes, hole diameter: 6.5mm

€52.00*

Chrome rim 23 x 2.50, hallmarked

suitable for Quickly S23-2,F,T,TT, punched version, 36 holes, hole diameter: 6.5mm

€58.00*

Chrome ring for S23, S23-2,F, T, TT, TT-K

New chrome ring for headlight models T, TT and 23 series

€22.80*

Circlip for clutch basket

€0.25*

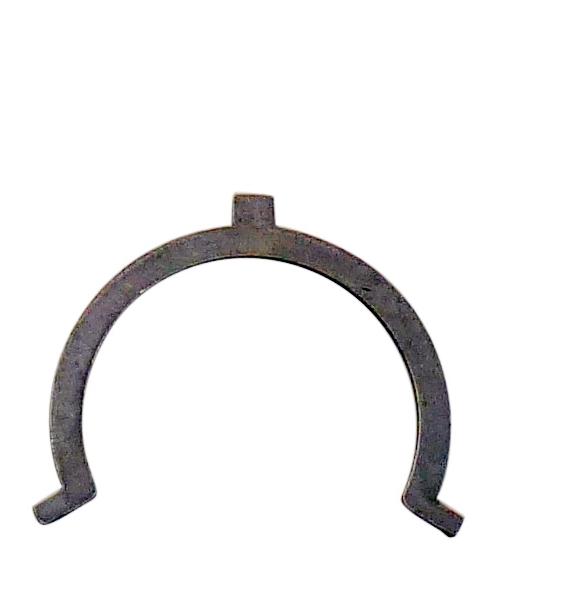

Circlip for clutch cup

Special fuse under the clutch cup

€2.80*

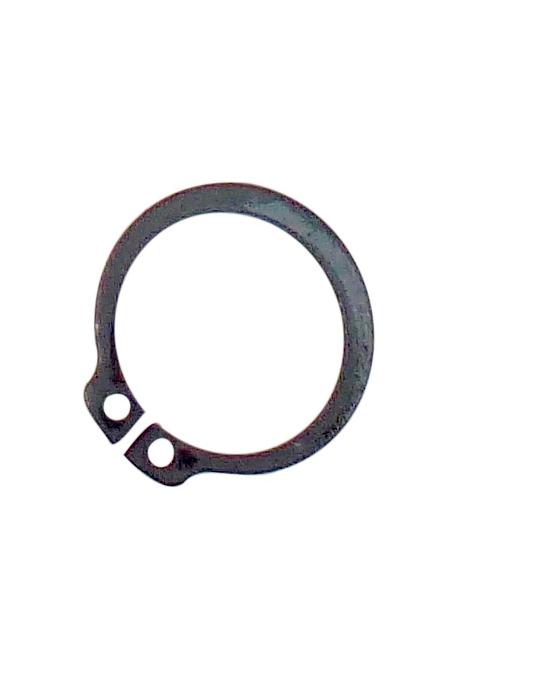

Circlip for spacer tube

€0.40*

Circlip in crankcase, left.

€1.00*

Circlip in the clutch cover

€1.00*

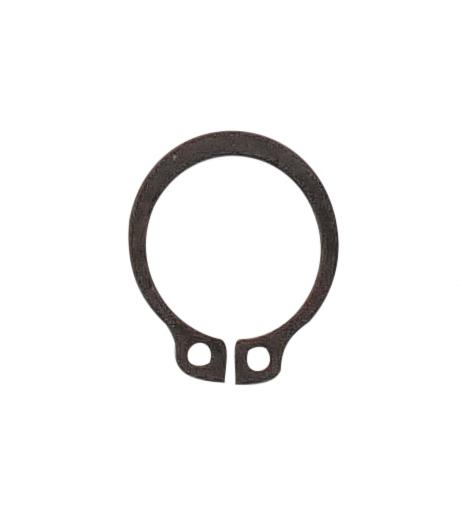

Circlip TT-K / F23

Locking ring for Quickly TT-K for kickstart spring or for Quickly F23 swing axle

€1.00*

Clamp for exhaust

Clamp between exhaust manifold and silencer suitable for all models, chrome-plated

€6.50*

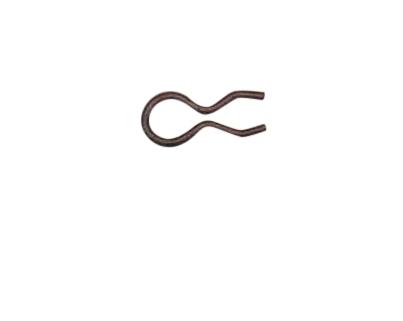

Clamping spring for starter flap

Clamping spring for cover plate pressure pin

€1.00*

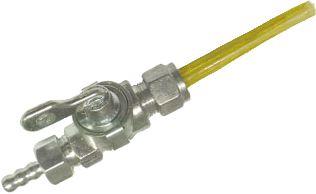

Classic 2 petrol tap

Classic petrol tap in metal design (including strainer), suitable for all models except Quickly T. For Quickly N with small tank, please select Classic petrol tap.

€14.50*

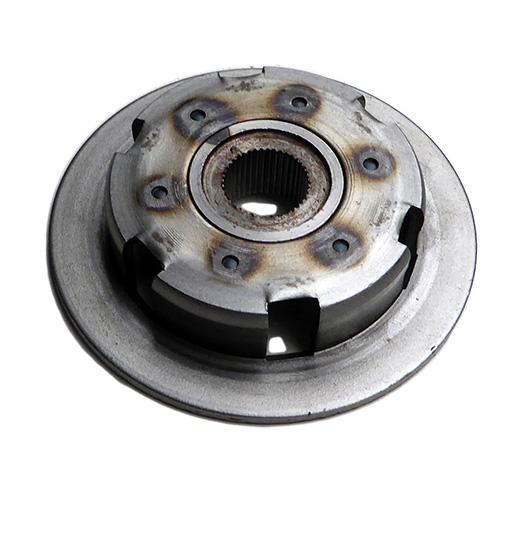

Clutch basket inside (f.5 discs)

Original clutch basket, inner for 5-plate clutch

€39.80*
