Quickly F23
Quickly F23 (mit Hinterradfederung)
Baujahr 1962 - 1969
Farbkombinationen arconasand/fliegerblau
Reifengröße 23 X 2.25 / 23 X 2.50
Alu-Felgen
3-Gang Getriebe
1,7 PS Motor - Ausführung Bremshebel am Motor rechts
Cable pull for handbrake, different versions depending on model and year of manufacture
High-gloss chrome-plated in top quality (2 pieces are required per vehicle)

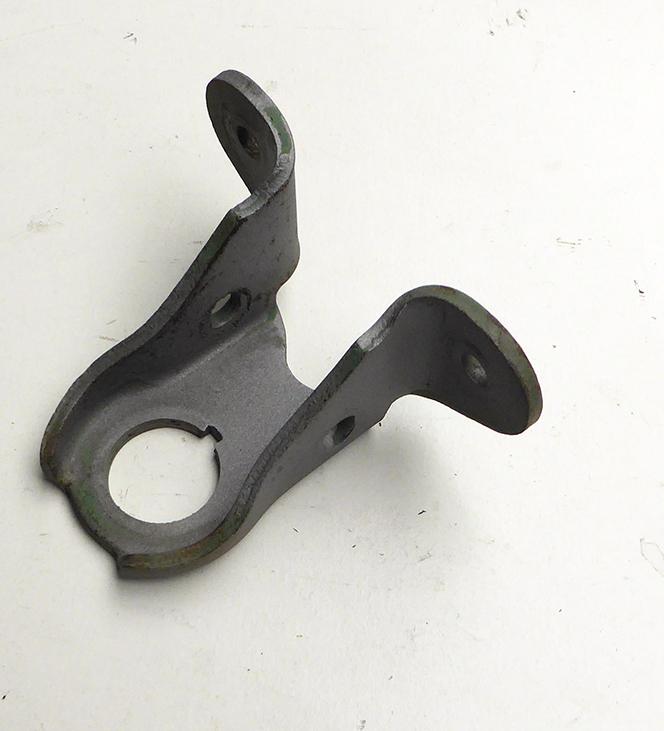

Gebrauchter Lenkerträger, Abbildung u. Farbe beispielhaft
Chrome-plated handlebars, high-gloss finish, suitable for Quickly N23, S23, S2-23, F23, Quick 50
complete insert with chrome ring, glass and reflector, suitable for models with handlebar fairingQuickly S23, S2-23, F23
Bracket for deco leversuitable for Quickly N,S,N23,S23,S23-2,F, TT, Cav. S23-2: all versions Cavallino: all versions Quickly F 23: all versions Quickly N: all/different versions-if applicable. select Quickly N23: all versions Quickly S: all/different versions -select as required Quickly S23: all versions
Suitable hook spanner for fitting the exhaust union nut
Ignition cable 5mm, especially for ignition coil type 3
Content: 1.9 Meter (€2.05 / 1 Meter)
Complete new ignition generator for NSU Quickly -Ready to install without soldering!with black, reinforced ignition coilAdvantages: very strong ignition spark ready mounted with cable (no soldering) Extremely durable Very low susceptibility to faults Quick to replace Ignition coil in original design with wide pole shoes! Each ignition is tested individually on the test bench Light output 17 watts, incl. pole wheel.Suitable for all models.
New complete ignition system with pole wheel for the Quickly, ready to fit incl. ignition cable and light connection plate,Every ignition system is tested by us. Optimum performance again with new ignition!
Easy-to-use ignition tuner Determine top dead centre, set pre-ignition - that's it! Screwed into the spark plug thread.
6 V 15/15 W for headlights Attention only for EXPORT vehicles with high/low beam!

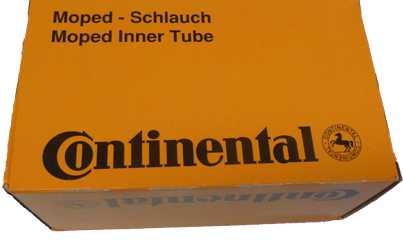

Group hose from Conti with car valve - proven quality for sizes 23X2.00 to 23X2.50

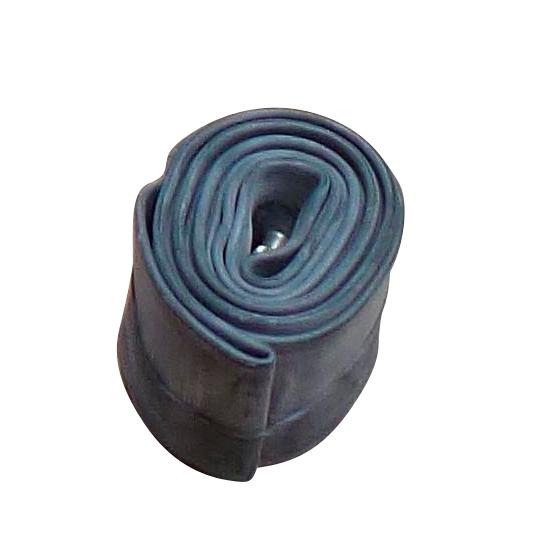

Inner Tube, 23x2.25- 23X2.50 with car valve, proven, heavy quality
is required in conjunction with the Bakelite piece. (Also standard on all Quickly F and S2-23 models
Make "Karcoma" is installed between petrol tap and carburettor
Original Magura PVC handle cover - ivory was originally fitted from the 60s onwards, especially on models S23,S23-2,F for Quickly T only from F.No. 2928721 2 pieces are required per vehicle!
Jet needle for all starter carburettor versions - replace needle and needle jet with original parts for better engine running and lower fuel consumption
Screw for attaching the handbrake lever to the handle fitting! Suitable for all models (not Quickly L)

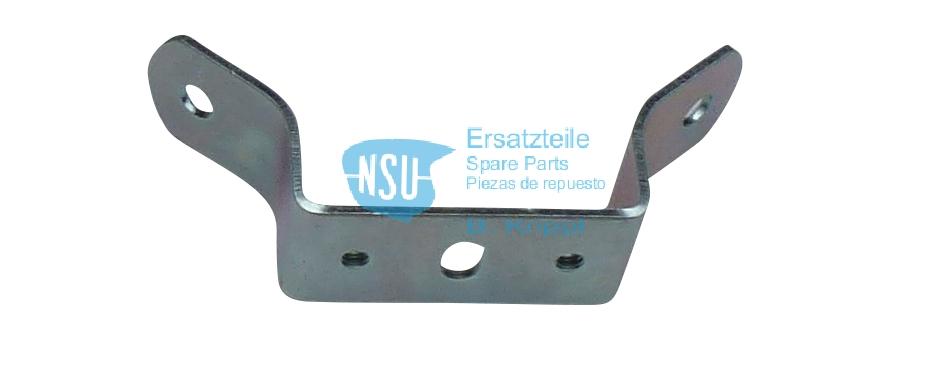

Number plate holder, galvanised - for easy mounting of the number plate
New light switch fit for Quickly 23 with fork cowling
Suitable for decovalve and bearing bolt for breaker
1 pair of fuses for gear lever or carrier bolt
Galvanised locking plate for mounting under the suspension fork cover nut
Lubricating felt for ignition - version with fastening rivet

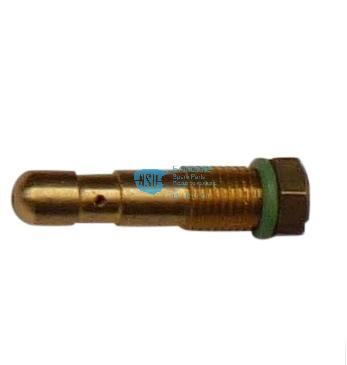

Main jet for all Quickly carburettor types - various jet sizes are available for tuning. Standard range for 1/9 carburettors: 54 - 58 Standard rangefor 1/12 carburettors: 60 - 66 All jets are original Bing parts!

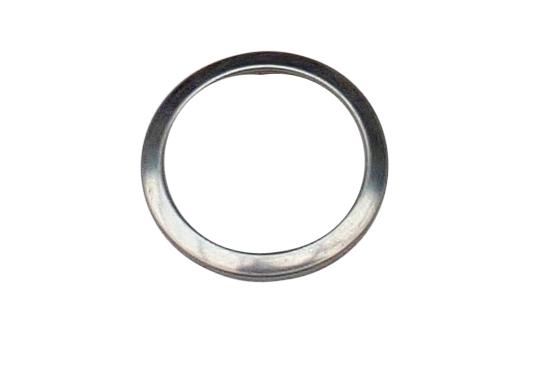

Manifold sealing ring suitable for all versions 2 pieces are required

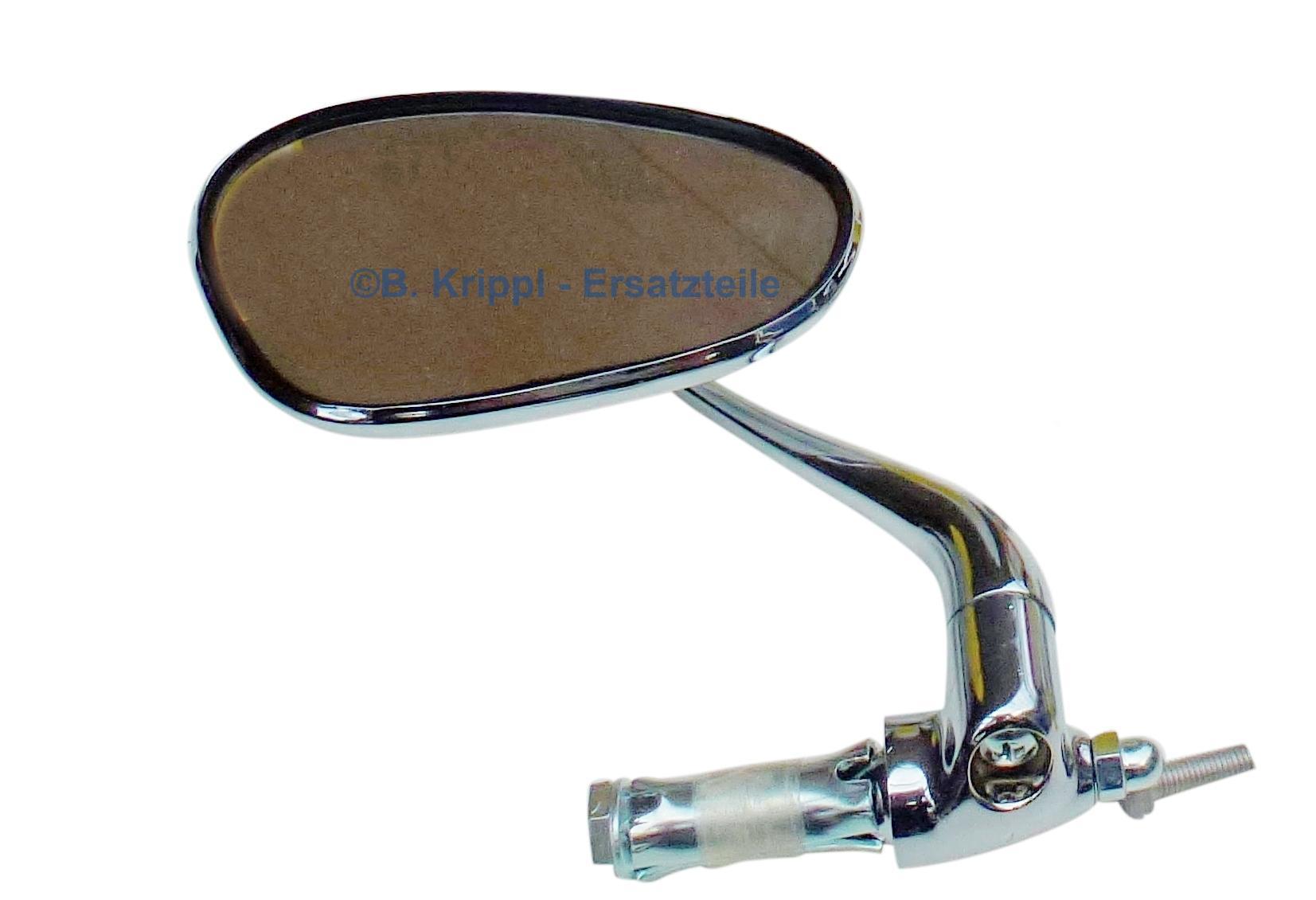

Swivelling mirror for the handlebar mounting in solid and high-quality construction - left Material: arm made of zinc die-castMirror head dimensions: 80 x 120 mm
Retaining clips for light cable (mudguard strut) - set of 3 pcs. suitable for Quickly N23, S23, S2-23, F23 galvanised
Connection cover + sign "Denfeld" + 2 screws original Denfeld spare part
Special tool for easy assembly and disassembly of the clutch

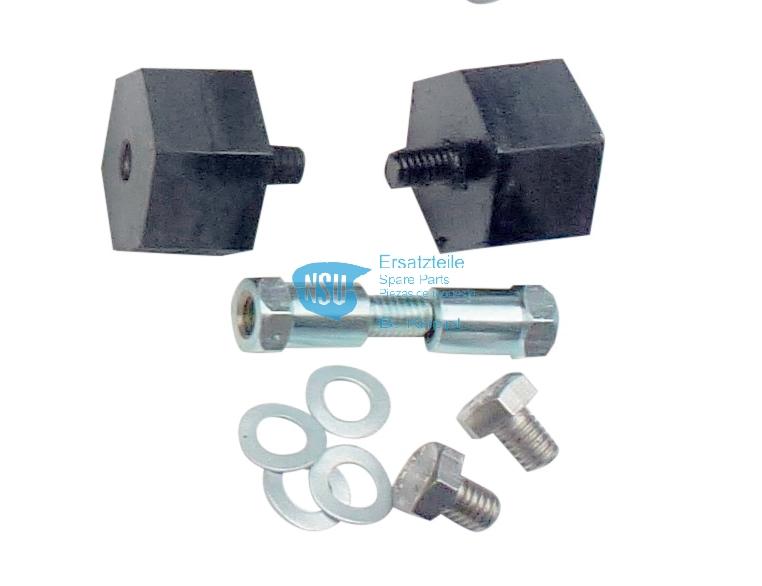

Complete set: 2 mounting dampers + intermediate piece for tank S23,S23-2,F
Fastening screw with spring washers for stand retaining spring -stainless steel-for all models with tilt stand (standard Quickly S23,S2,S2-23,F23,T,TT,TT-K)and when retrofitting Quickly N,S,N23 to tilt stand version)

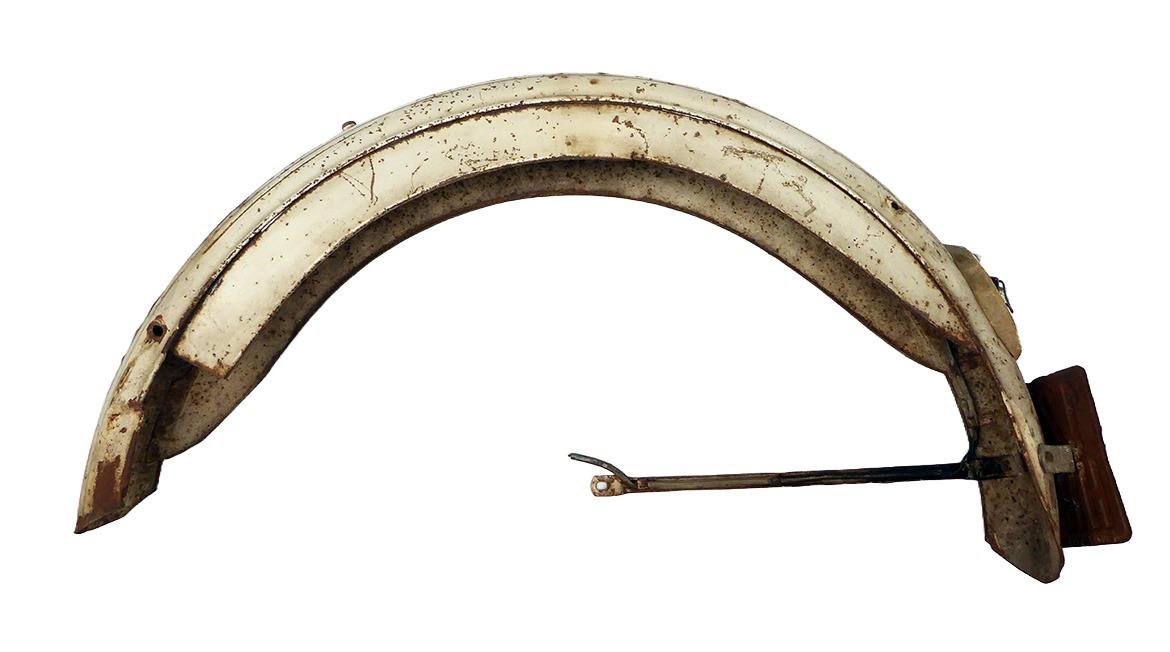

Used mudguard rear wheel for Quickly S23, S2-23, F23 - for restoration

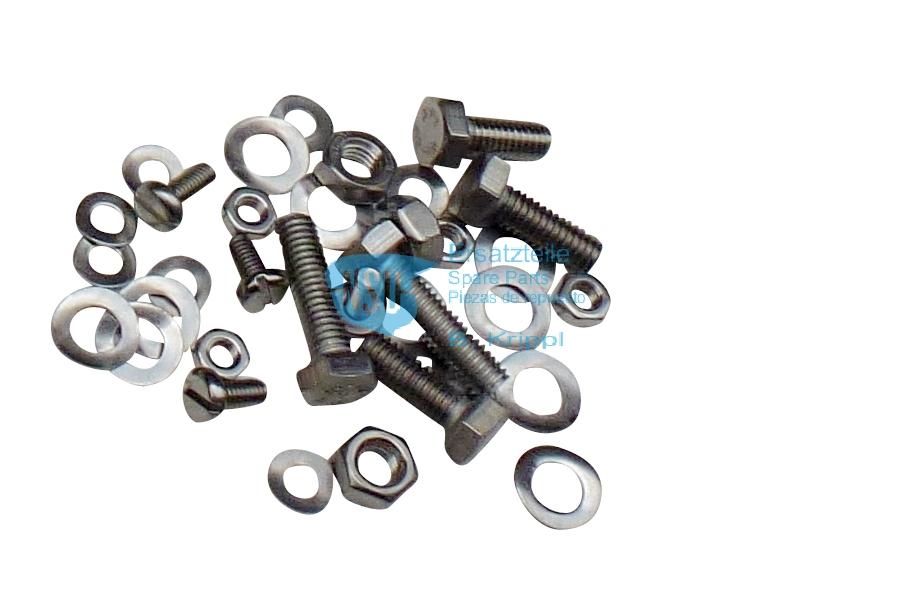

for strut mounting complete set for front or rear, VA 25- or 30-piece set with hexagon bolts, pan-head screws, nuts, washers for complete mudguard mounting
Plug nipple for handbrake or clutch cable2 pieces are required per vehicle!
Beautiful reprint of original NSU advertising boards with the slogan"Wann startest Du auf NSU"Each board in Format DIN A3 (297 x 420 mm) - five advertising boards printed on both sides on chromo cardboard (400g/sqm) and glossy foil laminated, with 2 eyelets (each at the top corners).The advertising panel with the imprint "DU" is punched out in the centre.Courtesy of AUDI AG / NSU GmbH
Bell with "NSU" embossing S2: all versions S23-2: all versions Quickly F 23: all versions Quickly N: all/different versions-if applicable. select Quickly N23: all versions Quickly S: all/different versions -select as required Quickly S23: all versions
The repair instructions were once aimed at the mechanics in the NSU workshops and conveyed the specialist knowledge required for a successful repair. Today, on the other hand, the content is primarily aimed at NSU Quickly enthusiasts. Old knowledge from the 1960s is required to successfully maintain the NSU Quickly, to carefully preserve its value or to continue using this popular historic moped. New edition! Old knowledge 1962-
Special nut for the bearing bolt on the suspension fork/swing arm
Stainless steel nut with galvanised spring washer for fastening the brake lever to the brake key (wheel hub)

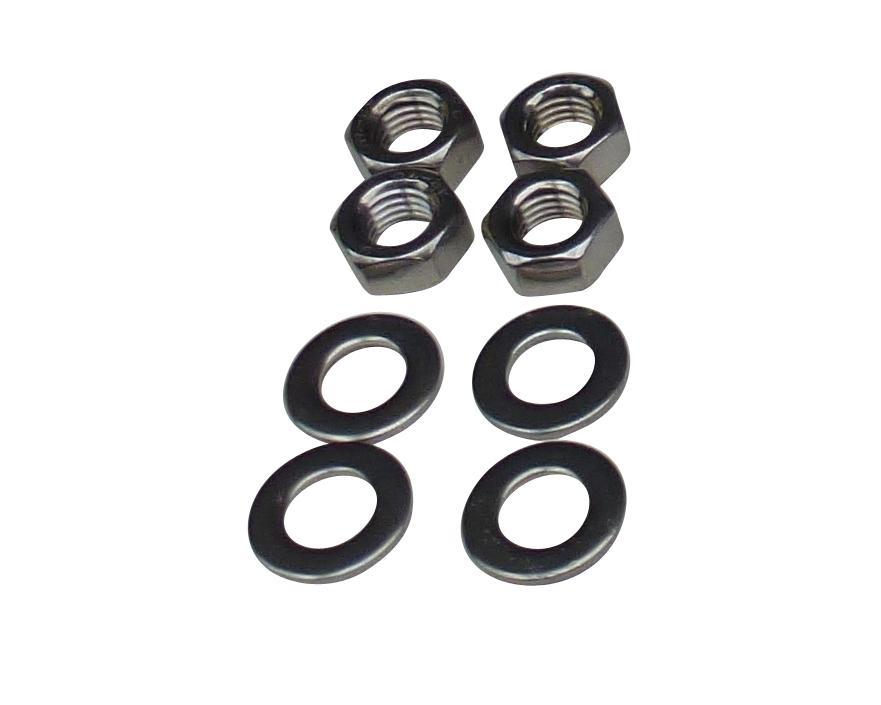

8-piece fastening set nuts and washers for the cylinder head- optionally galvanised or stainless steel -

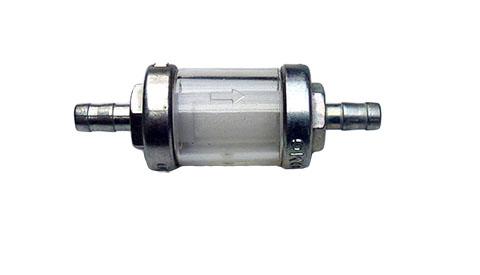

with 6mm hose connection. The petrol filter can be dismantled and cleaned, Made in Italy. Dimensions: - Outer diameter approx. 22mm - Total length approx. 64mm - Filter length approx. 40mm - Length of the connections approx. 12mm
New, original front wheel hub for Quickly S2, 2-23,T,TT,TT-K
